G 16-570

Bore diameter ( d (Inch) Tolerance +0 -0.0005 )

reset

back to list

G 16-570

G-570: Spherical plain bearings maintenance free

CAD-Model

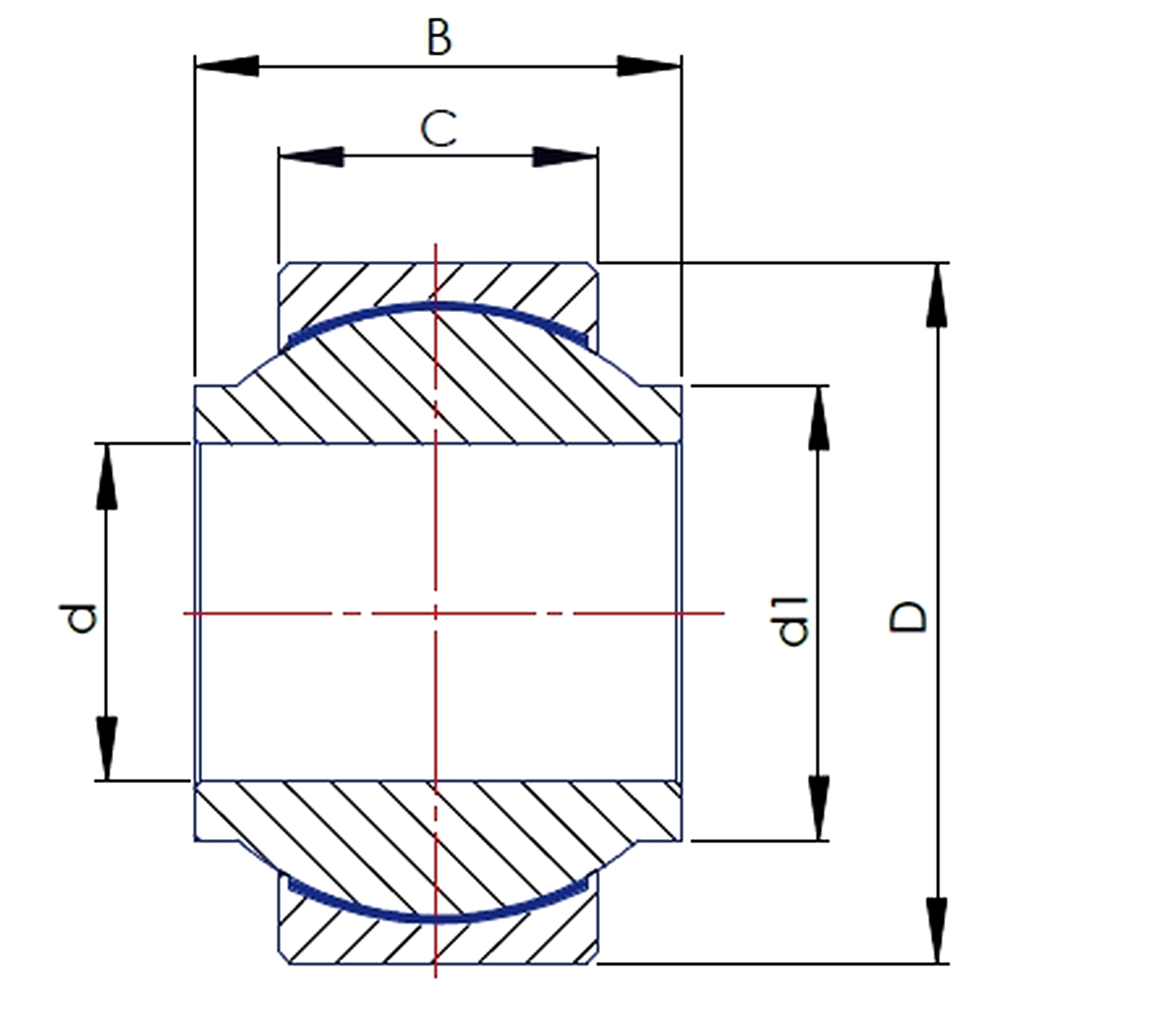

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

900359

Measurement

d (Inch) Tolerance +0 -0.0005:

0,625

d1 ~ min. (Inch):

0,844

B (Inch) Tolerance +0.000 -0.002:

1,2

C (Inch) Tolerance +0.005 -0.005:

0,567

D (Inch) Tolerance +0.0000 - 0.0005:

1,375

Load rating static. C0 max. (kN):

213,68

Load rating dyn. C max. (kN):

85,94

Tilt angle α (°):

Weight (kg):

0,111

Product series:

G-570: Spherical plain bearings maintenance free

Dimension series:

Special version

Product:

Spherical plain bearings

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Units of measurement:

Inch

V-groove:

without V-groove

Inner ring: Stainless steel, hardened, ground and polished

Outer ring: Stainless steel, lined with an antifriction film consisting of PTFE (HPL01)

HPL01: High performance liner

Bearing clearance: Reduced bearing clearance
