GE 30-TGR

GE-TGR: Spherical plain bearings dimension series E, maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

900255

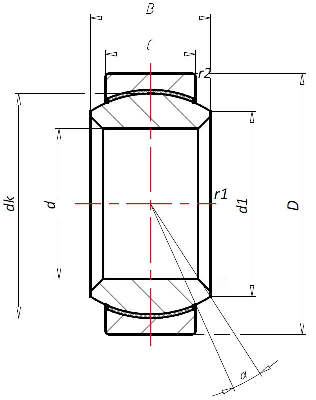

Measurement

d (mm):

d1 ~ (mm):

B (mm):

C (mm):

D (mm):

dk (mm):

40,7

r1 (mm):

0,8

r2 (mm):

Load rating static C0 (kN):

166

Tilt angle (°):

Weight (kg):

0,16

Product series:

GE-TGR: Spherical plain bearings dimension series E, maintenance free

Dimension series:

Dimension series E

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Material:

Stainless steel

Inner ring: Stainless steel, hardened, ground and polished

Outer ring: Stainless steel lined with PTFE, cold formed around the inner ring.
