GE 70-HO2RS

Bore diameter ( d (mm) )

Width ( B (mm) )

C (mm)

Outer diameter ( D (mm) )

reset

back to list

GE 70-HO2RS

GE-HO2RS: Spherical plain bearings maintenance required, sealed

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

506583

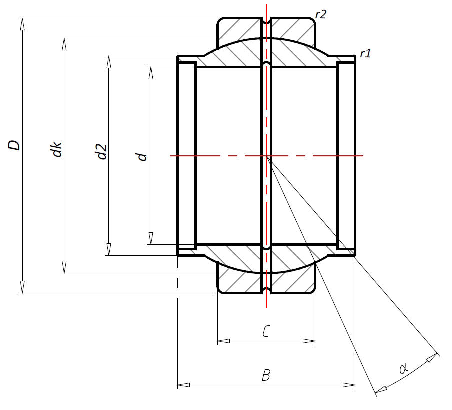

Measurement

d (mm):

d2 min. (mm):

B (mm):

C (mm):

D (mm):

105

dk (mm):

r1 (mm):

0,3

r2 (mm):

Load rating static C0 (kN):

1560

Tilt angle (°):

Weight (kg):

1,6

Product series:

GE-HO2RS: Spherical plain bearings maintenance required, sealed

Dimension series:

Special version

Bearing:

Plain bearing

Sealing:

2RS-Sealing

Maintenance/Friction pairing:

Maintenance required steel/steel

Material:

Standard

Inner ring: Antifriction bearing steel, hardened, ground

Outer ring: Antifriction bearing steel, hardened, ground. Outer ring is split for assembly of inner ring.

Lubrication: Lubrication groove and lubrication bore, relubrication is also possible through the inner bore.

Sealing: Sealing rings at both sides.

Radial clearance: See technical basics spherical bearings dimension series E, mating material steel on steel.
