30207-A

Tapered roller bearings, single-row

PDF datasheet

Specification

ARTNR 500056 30207-A

Identification numbers

ARTNR

500056

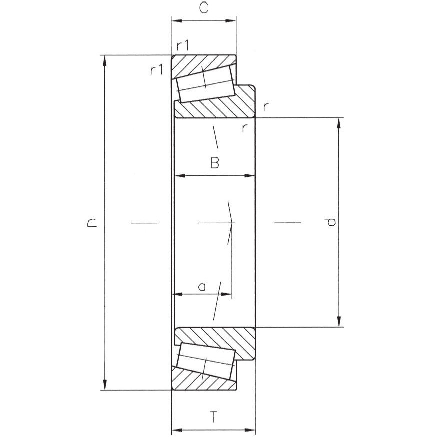

Measurement

d (mm):

35

D (mm):

72

B (mm):

17

C (mm):

15

T (mm):

18,25

r,r1 min (mm):

1,5

a ca. (mm):

15

Load rating dyn. C (kN):

50

e:

0,37

y:

1,6

Load rating static C0 (kN):

58,5

y0:

0,9

Limiting speed grease (min-1):

5300

Limiting speed Oil (min-1):

7000

Weight (kg):

0,341

Product:

Roller bearing

Product series:

Tapered roller bearings, single-row

Trademark:

ASK
