SB 22209-W33-SS

Self aligning roller bearings McGill

PDF datasheet

Specification

ARTNR 504295 SB 22209-W33-SS

Find the right solution for your application

Find your contact person

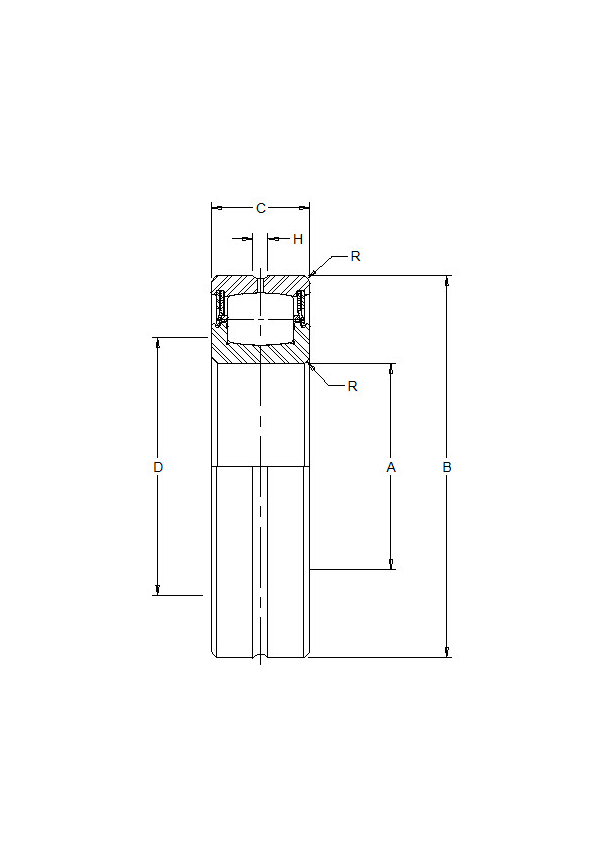

Measurement

A (mm):

45

Tolerance (µm):

-13

B (mm):

85

Tolerance (µm):

-15

r (mm):

1

E (mm):

74,6

H (mm):

4,4

J min (mm):

2,4

Limiting speed oil (min-1):

5600

Load ratings dynamic C (kN):

84,37

Load ratings static C0 (kN):

78,73

Weight (kg):

0,59

Product:

Roller bearing

Product series:

Self aligning roller bearings

Trademark:

McGill

C (mm):

23

D (mm):

52,4

ARTNR:

504295
