1301

Self aligning ball bearings

PDF datasheet

Specification

ARTNR 910174 1301

Identification numbers

ARTNR

910174

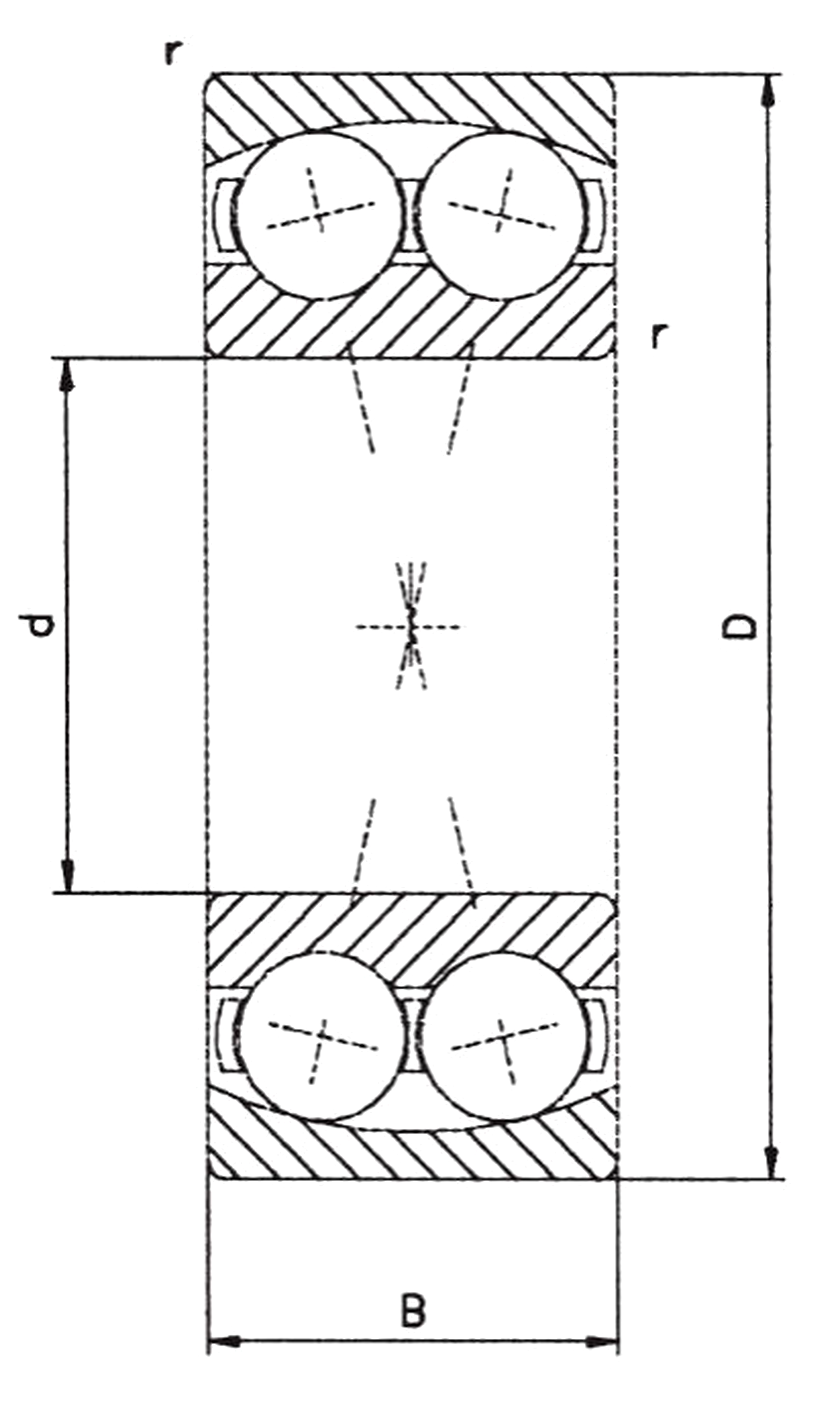

Measurement

d (mm):

12

D (mm):

37

B (mm):

12

r min (mm):

1

Load ratings dynamic C (kN):

9,36

e:

0,35

y1:

1,8

y2:

2,8

Load ratings static C0 (kN):

2,16

y0:

1,9

Limiting speed grease (min-1):

18000

Limiting speed oil (min-1):

22000

Weight (kg):

0,073

Product:

Ball bearing

Product series:

Self aligning ball bearings

Design:

Open

Trademark:

ASK
