KUIL 20-ZZNR

Thread pitch ( d3 (mm) )

Bore diameter ( d (mm) )

reset

back to list

KUIL 20-ZZNR

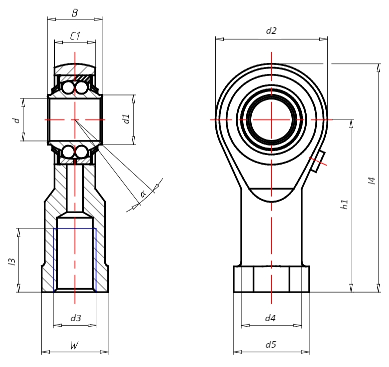

KUI-ZZ: Rod ends with ball bearings, female thread

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

105457

Measurement

d (mm):

d3 (mm):

M20x1,5

B (mm):

C1 (mm):

18,0

d1 ~ (mm):

24,0

d2 (mm):

d4 ~ (mm):

27,5

d5 (mm):

34,0

h1 (mm):

l3 min. (mm):

l4 ~ (mm):

102,5

W (mm):

Limiting speed (min-1):

800

Load ratings bearing dynamic (kN):

5,36

Load ratings bearing static C0 (kN):

1,73

Tilt angle (°):

Weight (kg):

0,35

Product series:

KUI-ZZ: Rod ends with ball bearings, female thread

Dimension series:

Dimension series K

Bearing:

Roller bearing

Sealing:

Covering disc

Maintenance/Friction pairing:

Low maintenance roller bearing

Metric thread:

Female left hand thread

Material:

Stainless steel

Rollings elements:

Balls

Interior construction:

Full complement
