KIL 22-DL

KI-D: Rod ends dimension series K, female thread, maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

Specification

Identification numbers

ARTNR

900051

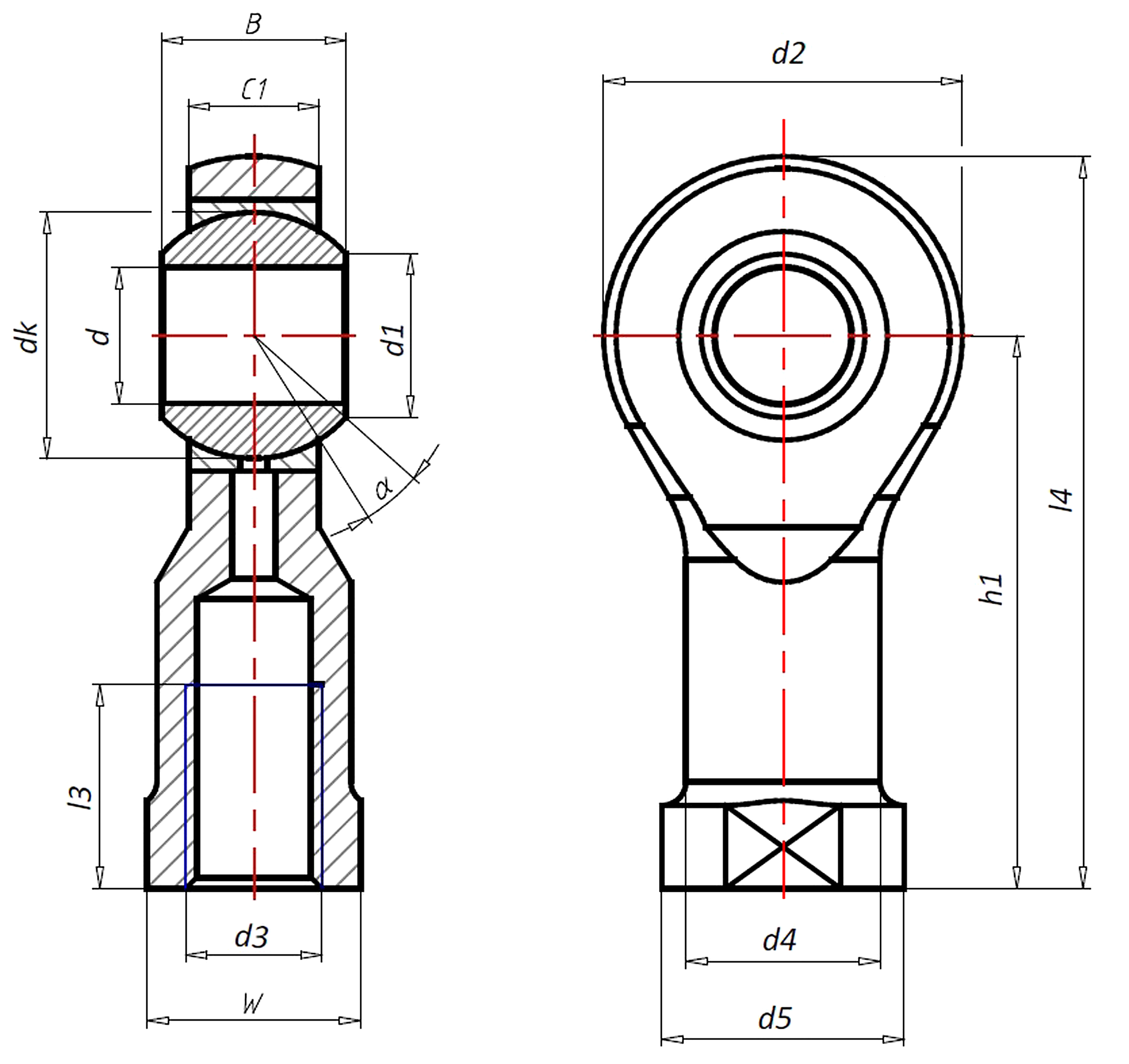

Measurement

d (mm):

d3 (mm):

M22x1,5

B (mm):

C1 (mm):

d1 ~ (mm):

25,8

d2 max. (mm):

d4 ~ (mm):

d5 (mm):

dk (mm):

38,1

h1 (mm):

l3 min. (mm):

l4 ~ (mm):

111,5

W (mm):

Load rating static C0 (kN):

101

Load rating dyn. C (kN):

Tilt angle (°):

Weight (kg):

0,49

Product series:

KI-D: Rod ends dimension series K, female thread, maintenance free

Dimension series:

Dimension series K

Bearing:

Plain bearing

Sealing:

Without seal

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Metric thread:

Female left hand thread

Material:

Housing high-grade tempering steel

Inner ring: Antifriction bearing steel, hardened, ground and polished.

Outer ring: Steel, lined with an antifriction film consisting of PTFE.

Housing: High-grade tempering steel (heat-treated), galvanized and chromated. The spherical bearing is pressed into the housing and caulked at both sides.
