GK 40-DO

GK-DO: Hydraulic-rod end with round welding end

PDF datasheet

Specification

ARTNR 503598 GK 40-DO

Identification numbers

ARTNR

503598

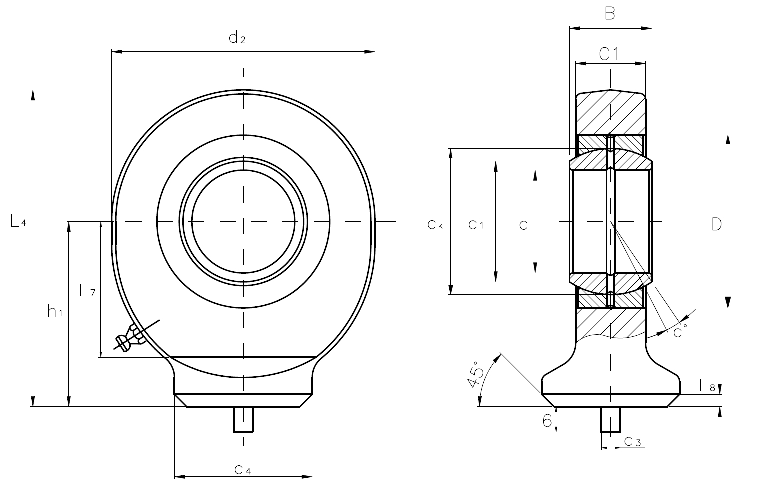

Measurement

d (mm):

40

d7 (mm):

4

d4 (mm):

52

B (mm):

28

C1 (mm):

23

d2 (mm):

92

l7 (mm):

48

l8 (mm):

4

h1 (mm):

69

l4 (mm):

115

dk (mm):

53

d1 (mm):

54

D (mm):

62

Tilt angle α (°):

7

Load rating dyn. C (kN):

90

Load rating static C0 (kN):

140,4

Weight (kg):

1,3

Product series:

GK-DO: Hydraulic-rod end with round welding end

Dimension series:

Hydraulic

Maintenance/Friction pairing:

Maintenance required steel/steel

Bearing:

Plain bearing

Material:

Standard
