GF 70-DO

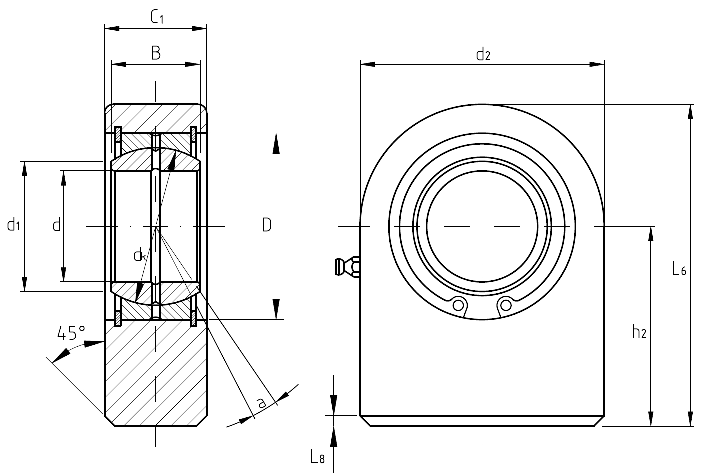

GF-DO: Hydraulic-rod end with square welding end

PDF datasheet

Specification

ARTNR 506384 GF 70-DO

Find the right solution for your application

Find your contact person

Measurement

d (mm):

70

B (mm):

49

C1 (mm):

55

d2 (mm):

164

l6 (mm):

197

h2 (mm):

115

dk (mm):

92

d1 (mm):

77,9

D (mm):

105

l8 (mm):

4

Tilt angle α (°):

6

Load rating dyn. C (kN):

283,5

Load rating static C0 (kN):

625,5

Weight (kg):

10,5

Product series:

GF-DO: Hydraulic-rod end with square welding end

Dimension series:

Hydraulic

Maintenance/Friction pairing:

Maintenance required steel/steel

Bearing:

Plain bearing

Material:

Standard

ARTNR:

506384
