S 12-326

S 326: Spherical plain bearings maintenance required

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

102581

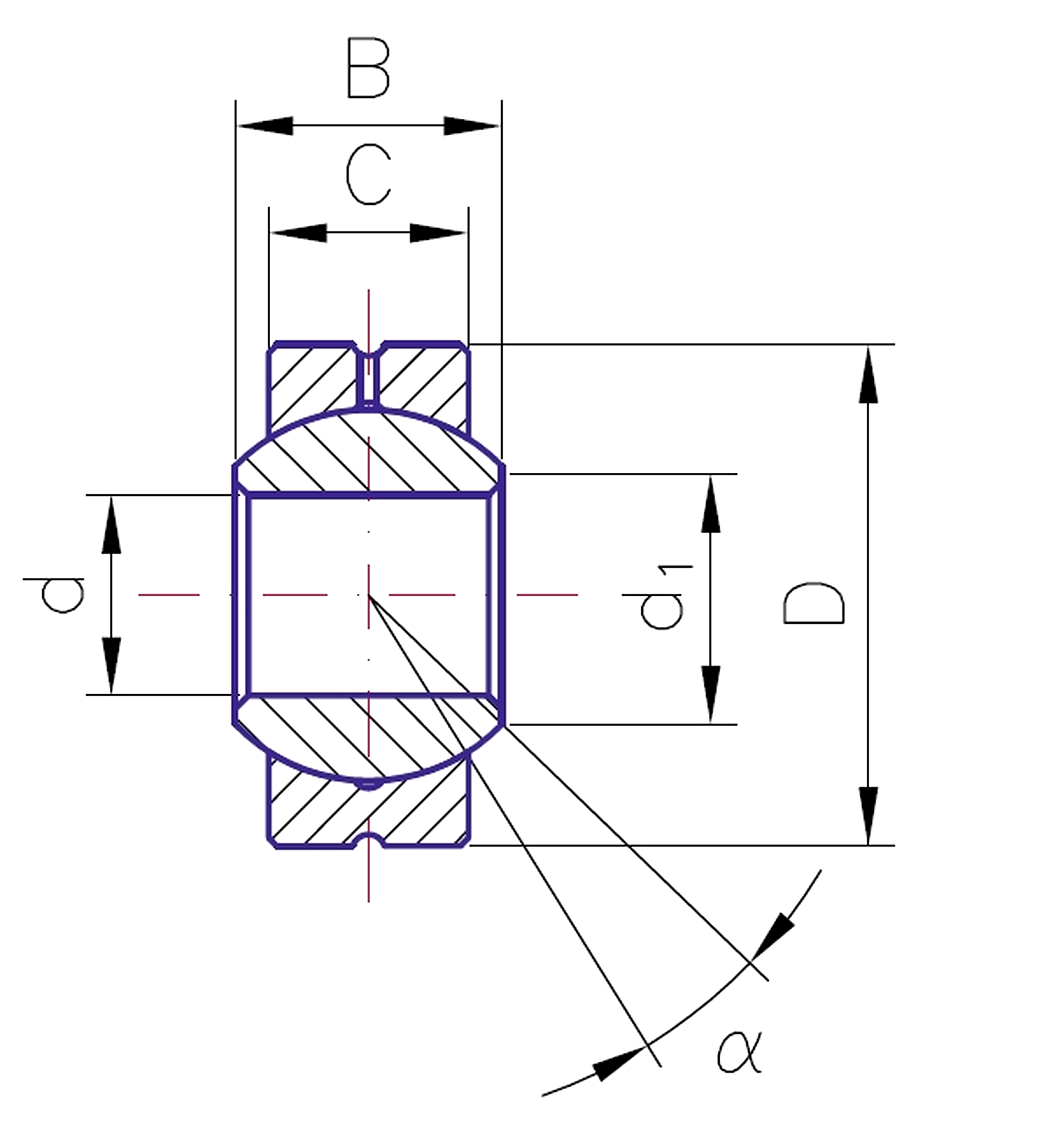

Measurement

d (mm):

d1 ~ (mm):

15,4

B (mm):

C (mm):

D (mm):

Load ratings static C0 (kN):

101

Load ratings dynamic C (kN):

13,5

Tilt angle (°):

Weight (kg):

0,08

Product series:

S 326: Spherical plain bearings maintenance required

Dimension series:

Special version

Bearing:

Spherical plain bearings

Maintenance/Friction pairing:

Maintenance required steel/steel

Units of measurement:

Metric

Inner ring: Antifriction bearing steel, hardened, ground and polished, sliding face hard chromium plated

Outer ring: Outer ring of spherical bearing made of tempering steel, bronzed, swaged around the inner ring, outside diameter ground

Lubrication: The lubricant enters the lubrication groove through a cross hole in the outer ring.

Bearing clearance: Reduced bearing clearance
