KA 18-450

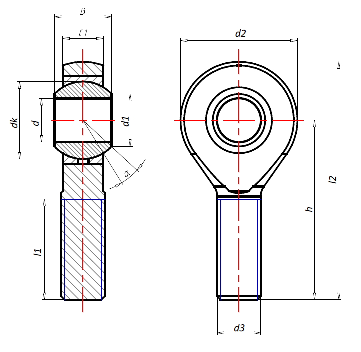

KA-450: Rod end dimension series K, male thread, maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

103828

Measurement

d (mm):

d3 (mm):

M18x1,5

B (mm):

C1 (mm):

16,5

d1 ~ (mm):

21,8

d2 max. (mm):

h (mm):

l1 min. (mm):

l2 (mm):

95,5

Load rating static C0 (kN):

Load rating dyn. C (kN):

Tilt angle α (°):

Weight (kg):

0,26

Product series:

KA-450: Rod end dimension series K, male thread, maintenance free

Dimension series:

Dimension series K

Product:

Rod end

Thread:

Male right hand thread

Thread design:

Standard

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Units of measurement:

Metric

Inner ring: Antifriction bearing steel, hardened, ground and polished, sliding face hard chromium plated

Outer ring: Stainless steel, lined with an antifriction film consisting of PTFE with metal fabric

Housing: High strength steel, forged, vibratory finished and electroplated

Bearing clearance: Reduced bearing clearance
