G 10-575V

G-575V: Spherical plain bearing maintenance free

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

900372

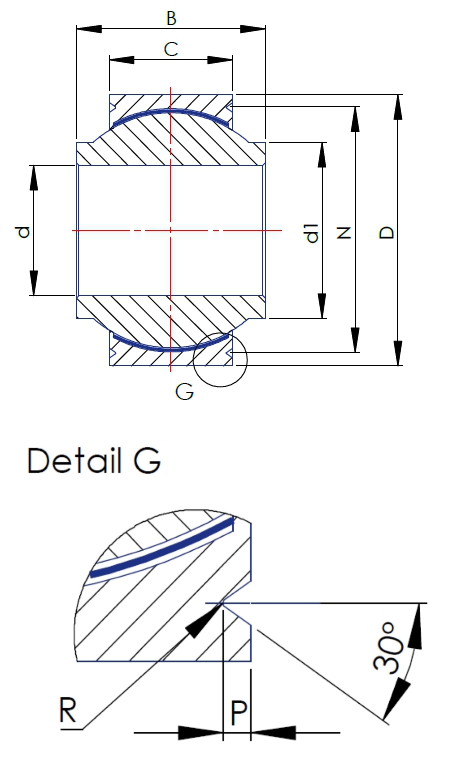

Measurement

d (Inch) Tolerance +0 -0.0005:

0,375

d1 ~ min. (Inch):

0,471

B (Inch) Tolerance +0.000 -0.002:

0,5

C (Inch) Tolerance +0.005 -0.005:

0,406

D (Inch) Tolerance +0.0000 - 0.0005:

0,8125

N (Inch) Tolerance +0.000 -0.008:

0,712

P (Inch) Tolerance +0.00 -0,01:

0,035

R (Inch):

0,010/0,017

Load rating stat. C0 max. (kN):

82,9

Load rating dyn. C max. (kN):

38,75

Tilt angle α (°):

Weight (kg):

0,031

Product series:

G-575V: Spherical plain bearing maintenance free

Dimension series:

Special version

Product:

Spherical plain bearings

Maintenance/Friction pairing:

Maintenance free steel/PTFE

Units of measurement:

Inch

V-groove:

with V-groove

Inner ring: Stainless steel, hardened, ground and polished

Outer ring: Stainless steel, lined with an antifriction film consisting of PTFE (HPL01)

HPL01: High performance liner

Bearing clearance: Reduced bearing clearance,

V: Version with v-groove
