G5x10 M5 RE VZ + FKB

Clevises and bolts

PDF datasheet

Specification

Identification numbers

ARTNR

501952

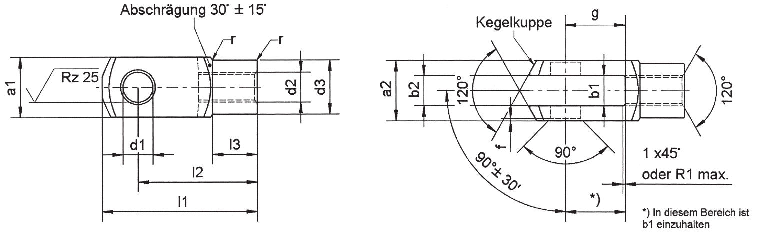

Measurement

d (mm):

5

g (mm):

10

a* (mm):

10

b** (mm):

5

d3 (mm):

M5x0,8

d2 (mm):

9

l1 (mm):

26

l2 (mm):

20

Weight (kg):

0,012

Material:

Antifriction bearing steel

*) tolerance a acc. to DIN 71752

**) tolerance b aac. to DIN 71752

FKB: Spring clip bolt

SB: Bolt with cotter pin

Further size are available on request.

Also available in stainless steel.
