G4x8 M4 RE VZ + FKB

Clevises and bolts

PDF datasheet

Specification

ARTNR 501948 G4x8 M4 RE VZ + FKB

Find the right solution for your application

Find your contact person

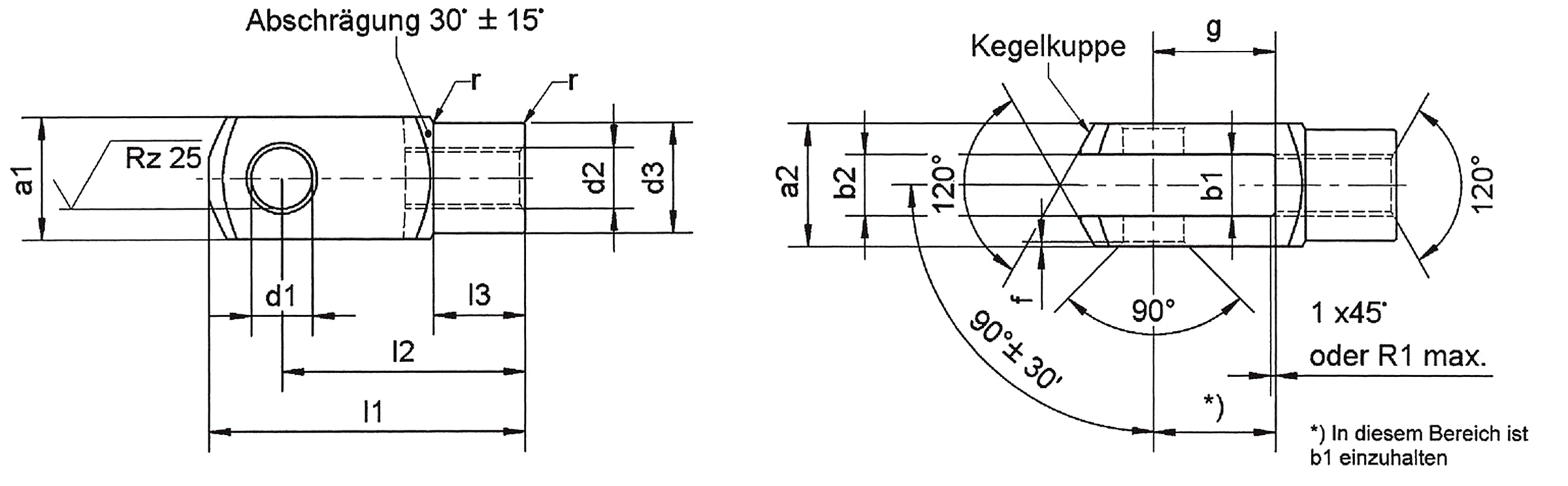

Measurement

d (mm):

4

g (mm):

8

a* (mm):

8

b** (mm):

4

d3 (mm):

M4x0,7

d2 (mm):

8

l1 (mm):

21

l2 (mm):

16

Weight (kg):

0,006

Material:

Antifriction bearing steel

ARTNR:

501948

*) tolerance a acc. to DIN 71752

**) tolerance b aac. to DIN 71752

FKB: Spring clip bolt

SB: Bolt with cotter pin

Further size are available on request.

Also available in stainless steel.
