MCYRR 50-SX

MCYRR

PDF datasheet

Specification

ARTNR 503961 MCYRR 50-SX

Find the right solution for your application

Find your contact person

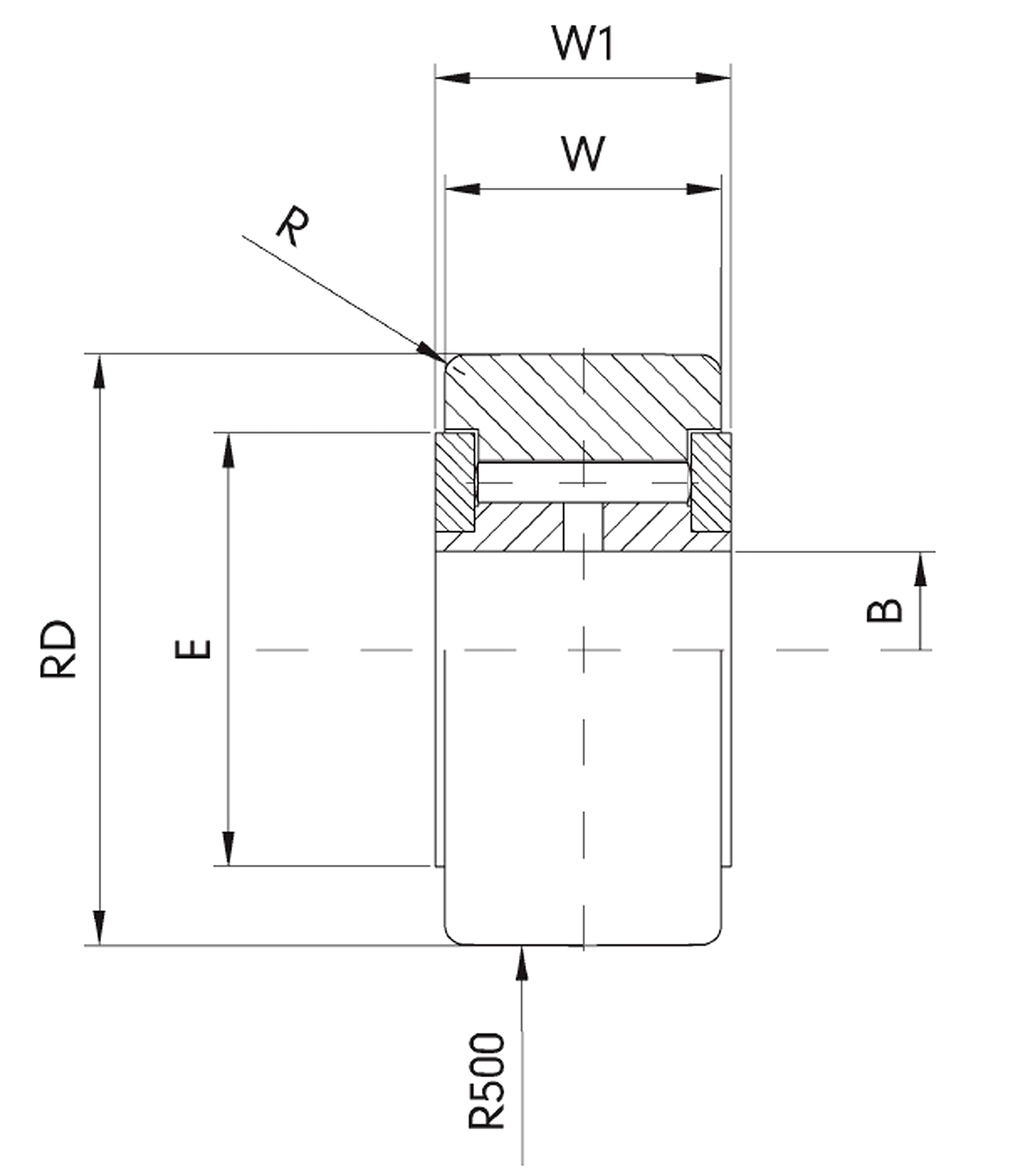

Measurement

B max (mm):

50

B min (mm):

49,988

RD (mm):

90

W +0,00 -0,12 (mm):

30

W1 max (mm):

32

W1 min (mm):

31,75

R (mm):

2

g6 max (mm):

44,991

g6 min (mm):

49,975

H6 max (mm):

50

h6 min(mm):

49,984

Clamping dia E min. (mm):

68

Limiting speed grease (min-1):

1600

Limiting speed oil (min-1):

2000

Load rating dynamic C (N):

45600

Load rating static C0 (N):

94800

Weight (kg):

0,96

Product:

Cam follower yoke type

Product series:

MCYRR

Design:

Standard

Bearing:

With cage

Sealing:

With seals

Coat design:

Cylindrical coat

Trademark:

McGill

ARTNR:

503961
