MCFR 62-X

MCFR

PDF datasheet

Specification

ARTNR 910223 MCFR 62-X

Find the right solution for your application

Find your contact person

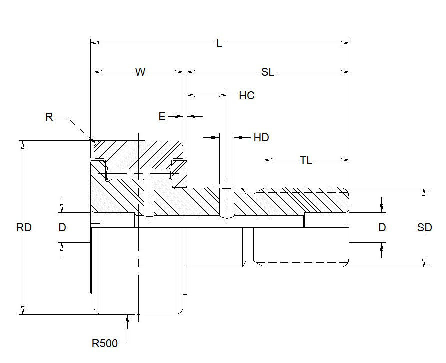

Measurement

RD (mm):

62

W (mm):

29

SD (mm):

24

SL (mm):

49,5

L (mm):

80

E (mm):

0,8

M (mm):

M 24x1,5

TL (mm):

25

HC (mm):

11

HD (mm):

4

R (mm):

1,5

Clamping dia E min. (mm):

38

Clamping torque max (1) Nm:

216

Limiting speed grease (min-1):

3100

Limiting speed oil (min-1):

4100

Housing bore dia min (mm):

24

Housing bore diamax (mm):

24,021

Load rating dynamic C (N):

26830

Load rating static C0 (N):

46300

Weight (kg):

0,801

Product:

Cam follower stud type

Product series:

MCFR

Design:

Standard

Bearing:

With cage

Mounting:

With srew-driver slot

Sealing:

Without seals

Coat design:

Cylindrical coat

Trademark:

McGill

ARTNR:

910223
