MCF 52-S

MCF

PDF datasheet

Specification

Identification numbers

ARTNR

504136

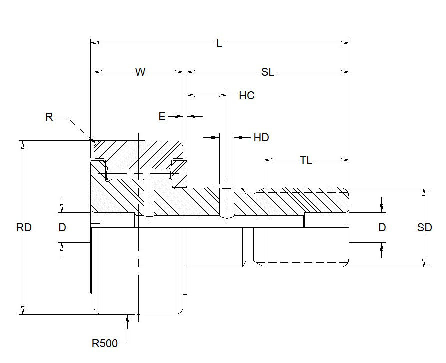

Measurement

RD (mm):

52

W (mm):

24

SD (mm):

20

SL (mm):

40,5

L (mm):

66

E (mm):

0,8

M (mm):

M 20x1,5

TL (mm):

21

HC (mm):

9

HD (mm):

4

R (mm):

1,5

Clamping dia E min. (mm):

30

Clamping torque max (1) Nm:

118

Limiting speed grease (min-1):

2600

Limiting speed oil (min-1):

3400

Housing bore dia min (mm):

20

Housing bore diamax (mm):

20,021

Load rating dynamic C (N):

25690

Load rating static C0 (N):

46700

Weight (kg):

0,455

Product:

Cam follower stud type

Product series:

MCF

Design:

Standard

Bearing:

Full complement needle rollers

Mounting:

With srew-driver slot

Sealing:

With seals

Coat design:

Crowned coat

Trademark:

McGill
