UKF 215-H

Bore diameter

reset

back to list

UKF 215-H

UKFC 200-H

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

900408

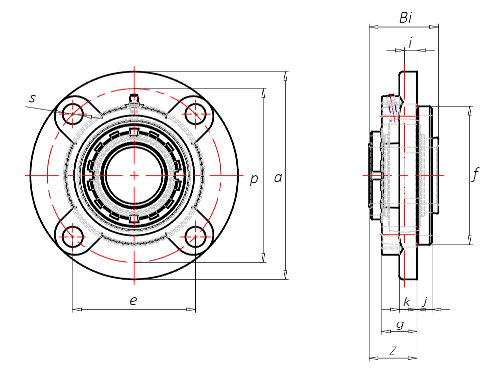

Measurement

Bore diameter:

a (mm):

200

e (mm):

159

i (mm):

g (mm):

l (mm):

s (mm):

Z (mm):

Bi (mm):

Bolt size:

M16

Load ratings Insert dyn. C (kN):

66,2

Load ratings Insert stat. C0 (kN):

49,3

Weight (kg):

6,33

Product:

Flanged bearing unit

Product series:

UKP 200-H

Material:

Cast iron

Fixing:

Adapter sleeve locking

Trademark:

ASK
