UKF 212-H

UKFC 200-H

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

509956

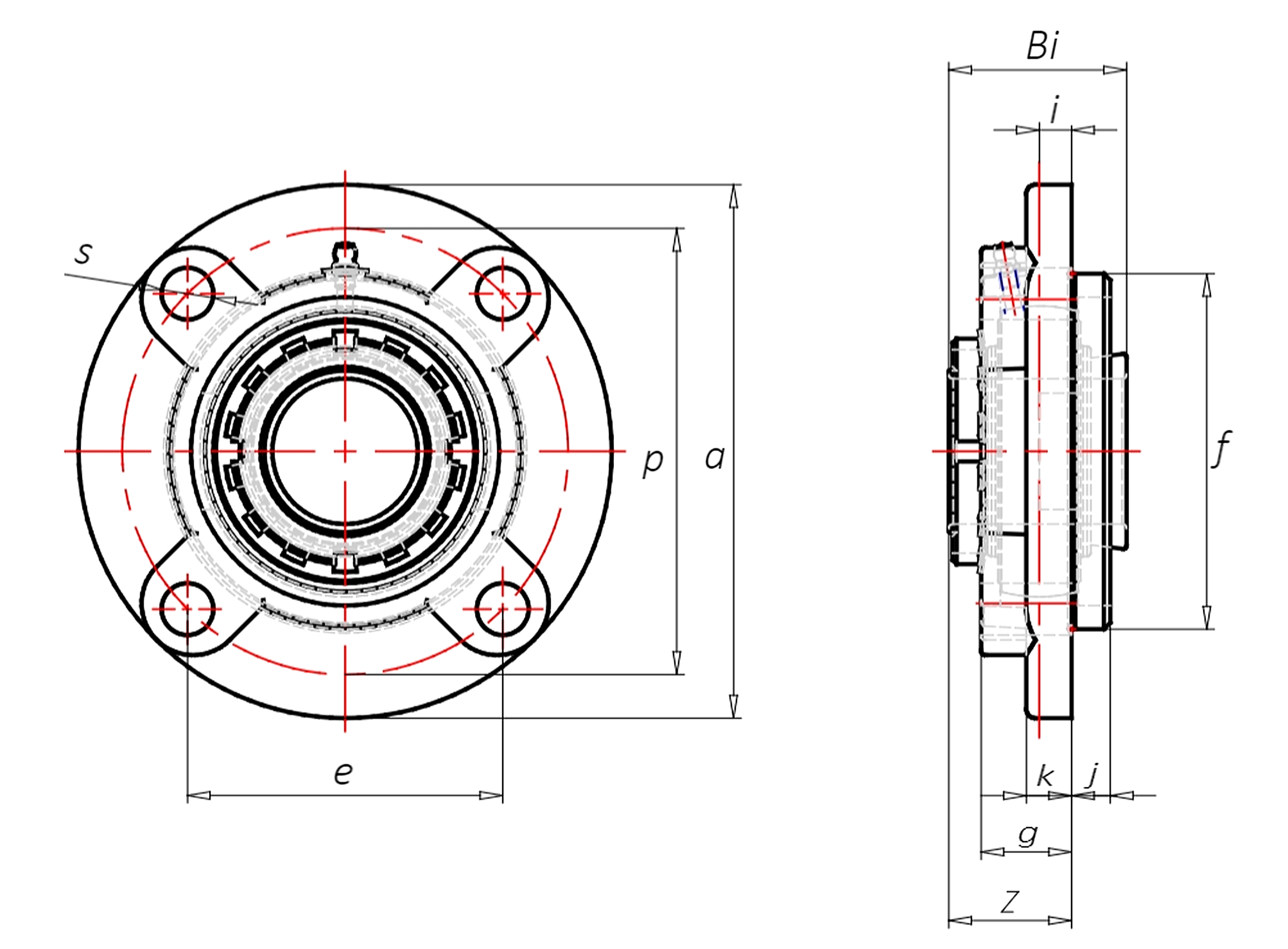

Measurement

Bore diameter:

a (mm):

175

e (mm):

143

i (mm):

g (mm):

l (mm):

s (mm):

Z (mm):

Bi (mm):

Bolt size:

M16

Load ratings Insert dyn. C (kN):

47,7

Load ratings Insert stat. C0 (kN):

32,8

Weight (kg):

4,03

Product:

Flanged bearing unit

Product series:

UKP 200-H

Material:

Cast iron

Fixing:

Adapter sleeve locking

Trademark:

ASK
