UCT 309

UCT 300

PDF datasheet

Specification

Identification numbers

ARTNR

502768

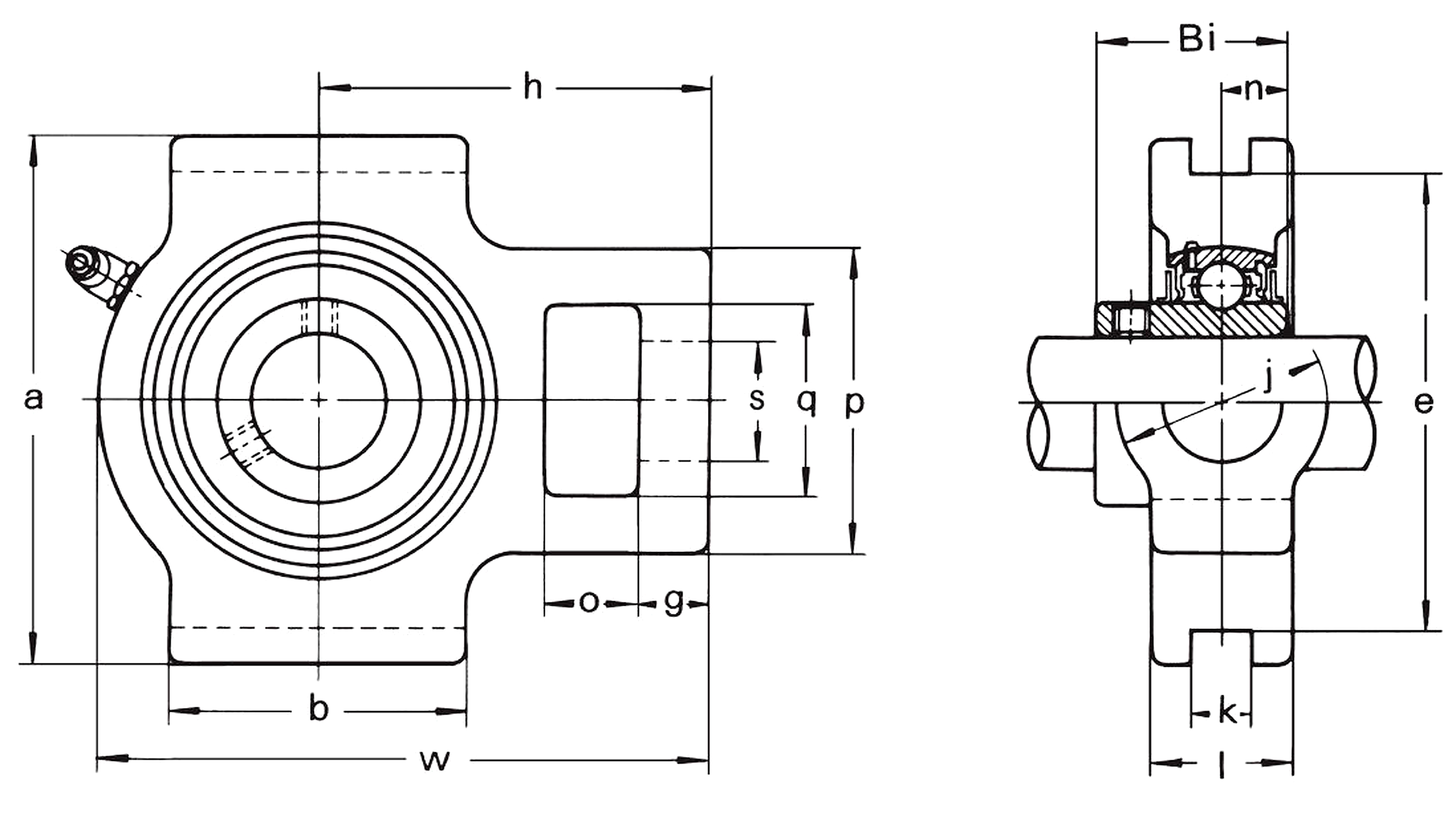

Measurement

Bore diameter:

o (mm):

g (mm):

p (mm):

q (mm):

s (mm):

b(mm):

k (mm):

e (mm):

125

a (mm):

138

w (mm):

178

j (mm):

l (mm):

h (h):

110

Bi (mm):

n (mm):

Load ratings Insert dyn. C (kN):

51,5

Load ratings Insert stat. C0 (kN):

29,5

Weight (kg):

4,1

Product:

Take-up unit

Product series:

UCT 300

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASAHI

Take-up
Heavy duty
Set-screw locking
Insert UC 300

Available on request with inserts of series UK and KH. Covers are possible as special version.
The conventional housing tolerances are valid for all shown housing dimensions.
All cast housing tolerances are nominal sizes and the conventional cast tolerances must be added.
