UCT 207

UCT 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Find the right solution for your application

Find your contact person

Contact us now

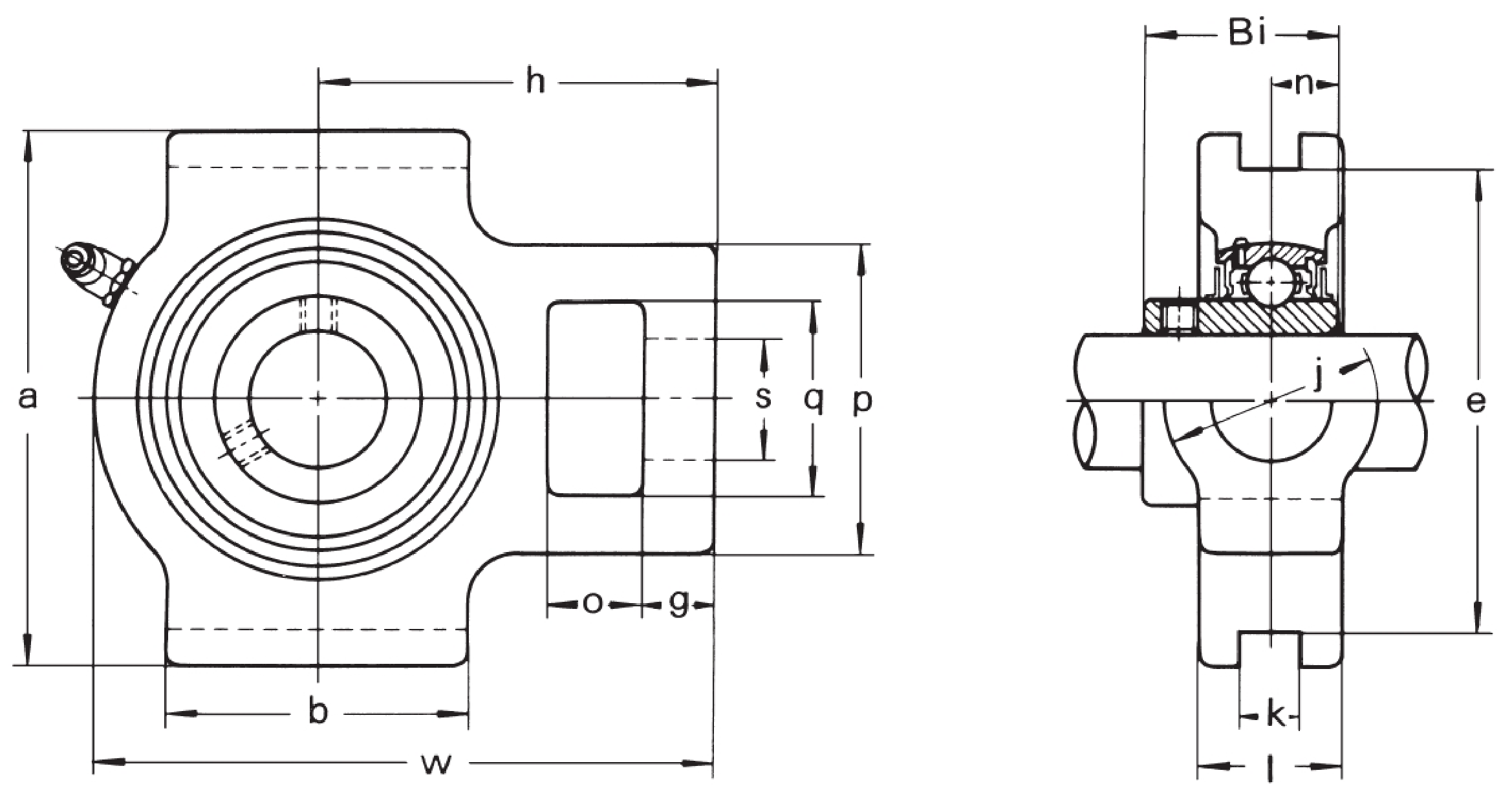

Measurement

Bore diameter:

35

o (mm):

16

g (mm):

13

p (mm):

64

q (mm):

37

s (mm):

22

b(mm):

64

k (mm):

12

e (mm):

89

a (mm):

102

w (mm):

129

j (mm):

37

l (mm):

30

h (h):

78

Bi (mm):

42,9

n (mm):

17,5

Load ratings Insert dyn. C (kN):

25,7

Load ratings Insert stat. C0 (kN):

15,2

Weight (kg):

1,4

Product:

Take-up unit

Product series:

UCT 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK

ARTNR:

503743
