UCPW 204

UCPW 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

507588

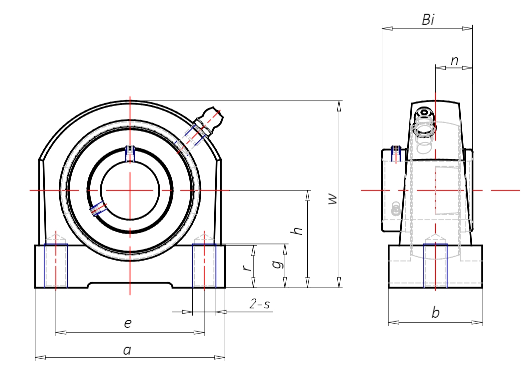

Measurement

Bore diameter:

20

h (mm):

33,3

a (mm):

65

e (mm):

50,8

b (mm):

32

r (mm):

15

g (mm):

14,5

w (mm):

64

Bi (mm):

31

n (mm):

12,7

Bolt size:

M8

Load ratings Insert dyn. C (kN):

12,8

Load ratings Insert stat. C0 (kN):

6,6

Weight (kg):

0,46

Product:

Pillow block

Product series:

UCPW 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK
