UCPH 205

Bore diameter

Trademark

reset

back to list

UCPH 205

UCPH 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 507054 UCPH 205

Identification numbers

ARTNR

507054

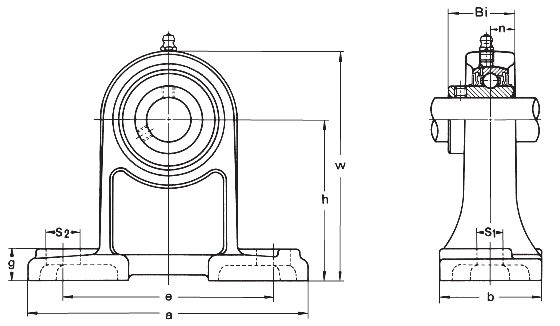

Measurement

Bore diameter:

25

h (mm):

80

a (mm):

140

e (mm):

105

b (mm):

50

s1 (mm):

13

s2 (mm):

19

g (mm):

16

w (mm):

114

Bi (mm):

34,1

n (mm):

14,3

Bolt size:

M10

Load ratings Insert dyn. C (kN):

14

Load ratings Insert stat. C0 (kN):

7,85

Weight (kg):

1,01

Product:

Pillow block

Product series:

UCPH 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK
