UCPA 208

UCPA 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Find the right solution for your application

Find your contact person

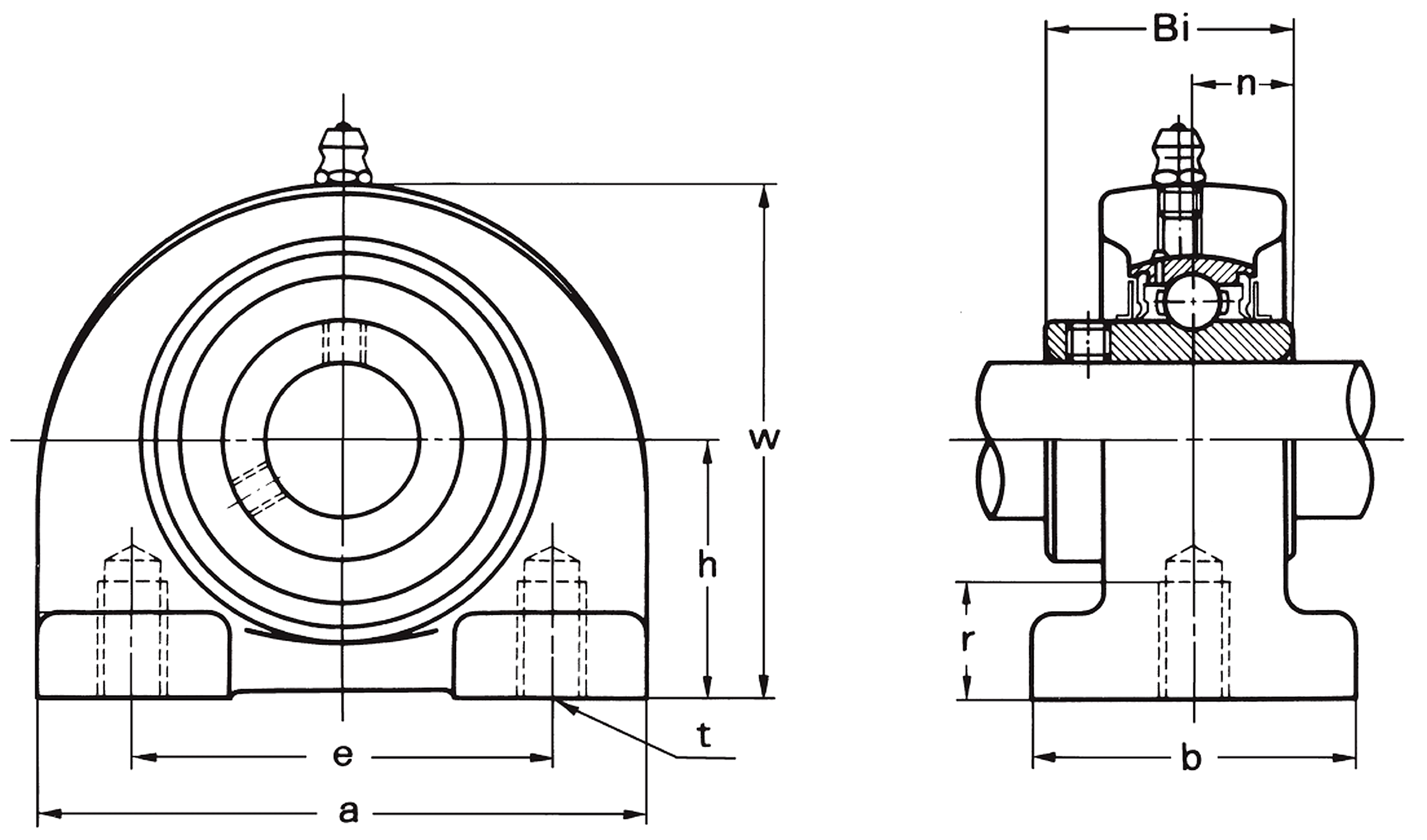

Measurement

Bore diameter:

h (mm):

49,2

a (mm):

116

e (mm):

b (mm):

r (mm):

g (mm):

w (mm):

100

Bi (mm):

49,2

n (mm):

Bolt size:

M14

Load ratings Insert dyn. C (kN):

29,5

Load ratings Insert stat. C0 (kN):

18,1

Weight (kg):

1,89

Product:

Pillow block

Product series:

UCPA 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK

ARTNR:

507051
