UCPA 206

UCPA 200

PDF datasheet

Specification

ARTNR 502374 UCPA 206

Identification numbers

ARTNR

502374

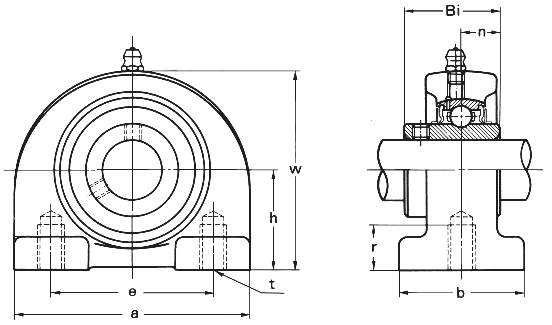

Measurement

Bore diameter:

30

h (mm):

42,9

a (mm):

94

e (mm):

66

b (mm):

48

r (mm):

18

g (mm):

10

w (mm):

84

Bi (mm):

38,1

n (mm):

15,9

Bolt size:

M14

Load ratings Insert dyn. C (kN):

19,6

Load ratings Insert stat. C0 (kN):

11,3

Weight (kg):

1,2

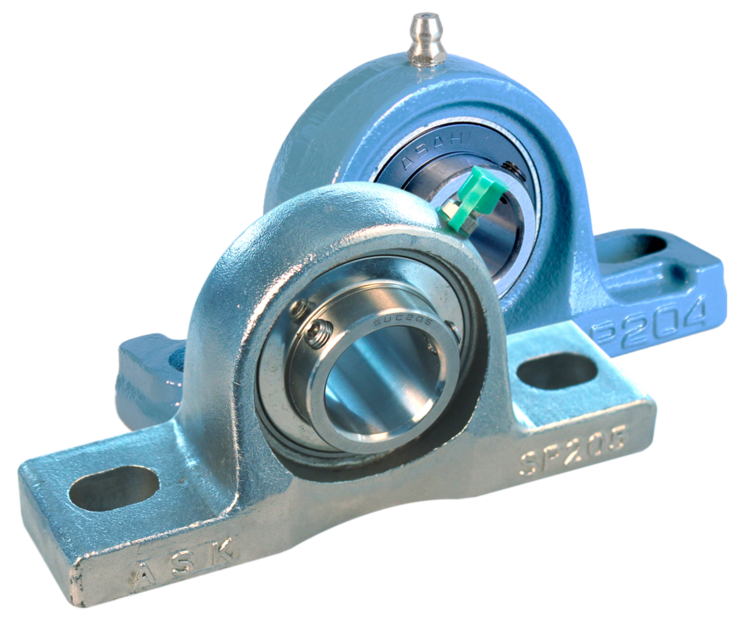

Product:

Pillow block

Product series:

UCPA 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASAHI
