UCFS 312

Bore diameter

Trademark

reset

back to list

UCFS 312

UCFS 300

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 508374 UCFS 312

Identification numbers

ARTNR

508374

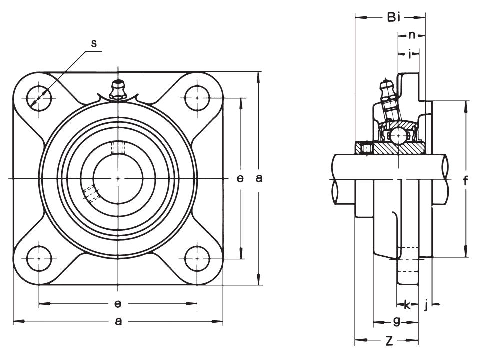

Measurement

Bore diameter:

60

a (mm):

195

e (mm):

150

i (mm):

19

g (mm):

42

s (mm):

23

j (mm):

14

k (mm):

22

f (mm):

160

Z (mm):

78

Bi (mm):

71

n (mm):

26

Bolt size:

M20

Load ratings Insert dyn. C (kN):

81,6

Load ratings Insert stat. C0 (kN):

51,8

Weight (kg):

7,2

Product:

Flanged bearing unit

Product series:

UCFS 300

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK
