UCF 307

Bore diameter

reset

back to list

UCF 307

UCF 300

CAD-Model

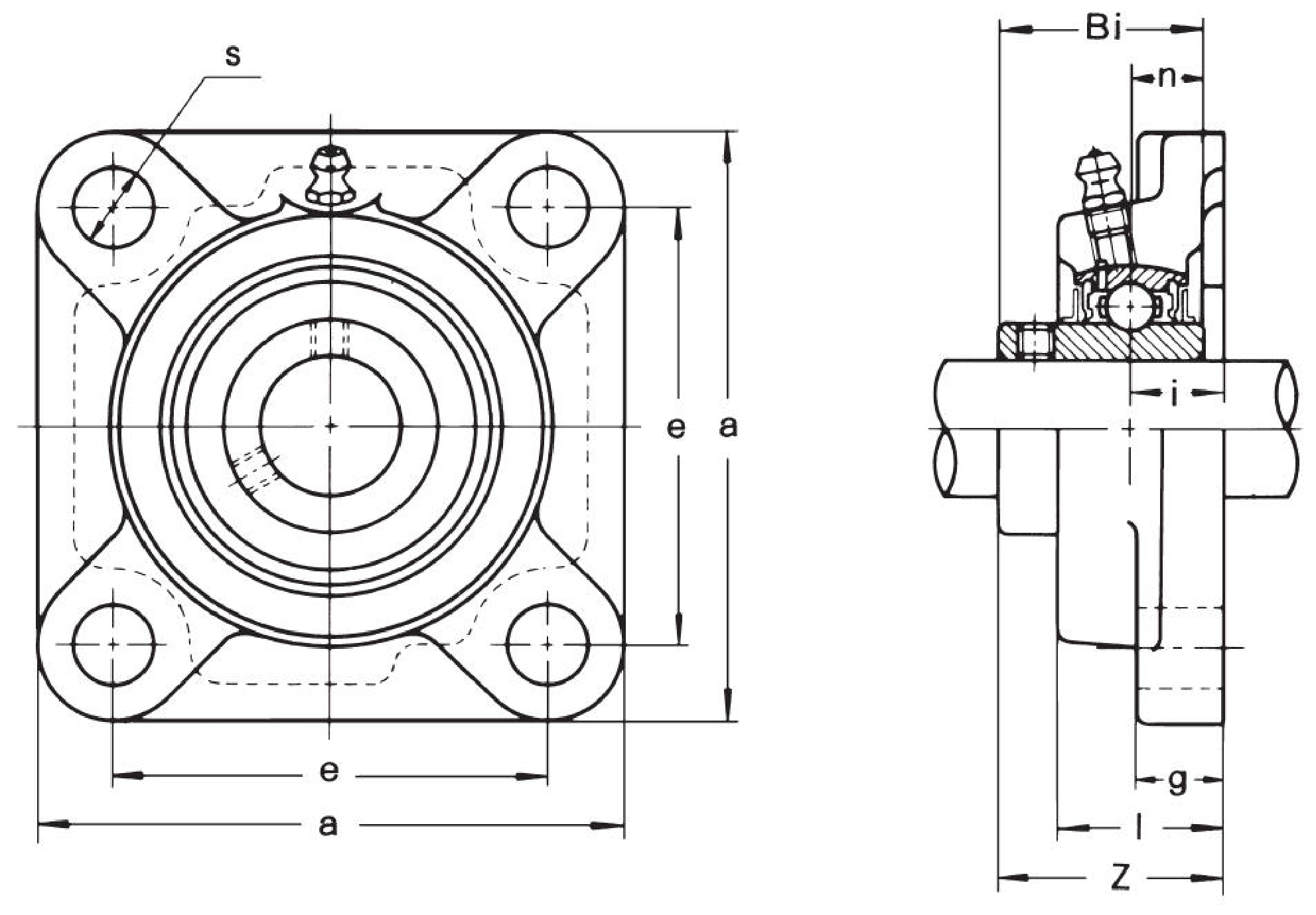

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

508398

Measurement

Bore diameter:

35

a (mm):

135

e (mm):

100

i (mm):

20

g (mm):

16

l (mm):

36

s (mm):

19

Z (mm):

49

Bi (mm):

48

n (mm):

19

Bolt size:

M16

Load ratings Insert dyn. C (kN):

33,3

Load ratings Insert stat. C0 (kN):

19,1

Weight (kg):

2

Product:

Flanged bearing unit

Product series:

UCF 300

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK
