PUCT 208

Bore diameter

reset

back to list

PUCT 208

PUCT 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 512251 PUCT 208

Identification numbers

ARTNR

512251

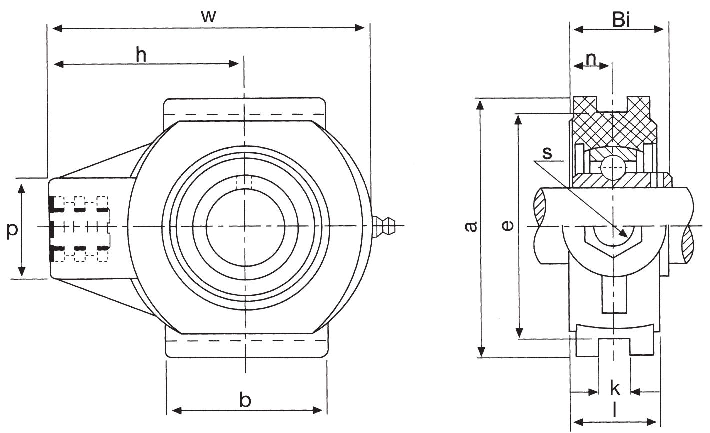

Measurement

Color:

blue

Bore diameter:

40

o (mm):

40

s (mm):

M16

b(mm):

80

k (mm):

16

e (mm):

102

a (mm):

114

w (mm):

140

l (mm):

34,5

h (h):

85

Bi (mm):

49,2

n (mm):

19

Load ratings Insert dyn. C (kN):

21,3

Load ratings Insert stat. C0 (kN):

14

Weight (kg):

0,95

Product:

Take-up unit

Product series:

PUCT 200

Material:

Thermoplastic

Fixing:

Set-screw locking

Trademark:

ASK
