PUCFL 209

PUCFL 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

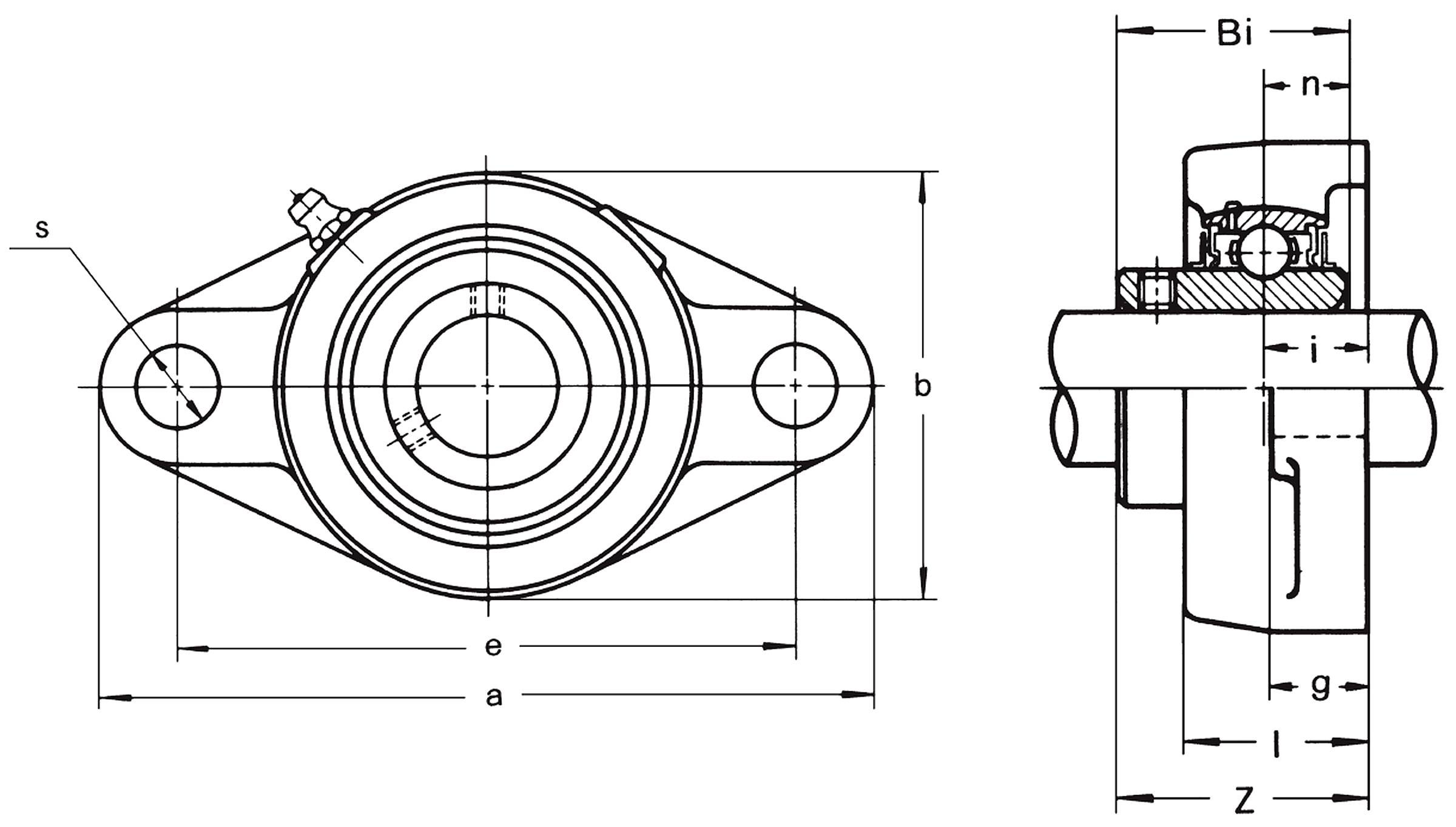

ARTNR 512235 PUCFL 209

Identification numbers

ARTNR

512235

Measurement

Color:

blue

Bore diameter:

45

a (mm):

188,5

e (mm):

148,5

i (mm):

24

g (mm):

21

l (mm):

41

s (mm):

17

b (mm):

108

Z (mm):

54,2

Bi (mm):

49,2

n (mm):

19

Bolt size:

M16

Load ratings Insert dyn. C (kN):

32,7

Load ratings Insert stat. C0 (kN):

20,9

Weight (kg):

1

Product:

Flanged bearing unit

Product series:

PUCFL 200

Material:

Thermoplastic

Fixing:

Set-screw locking

Trademark:

ASK
