MUP 004

MUP 000

PDF datasheet

Specification

ARTNR 502055 MUP 004

Identification numbers

ARTNR

502055

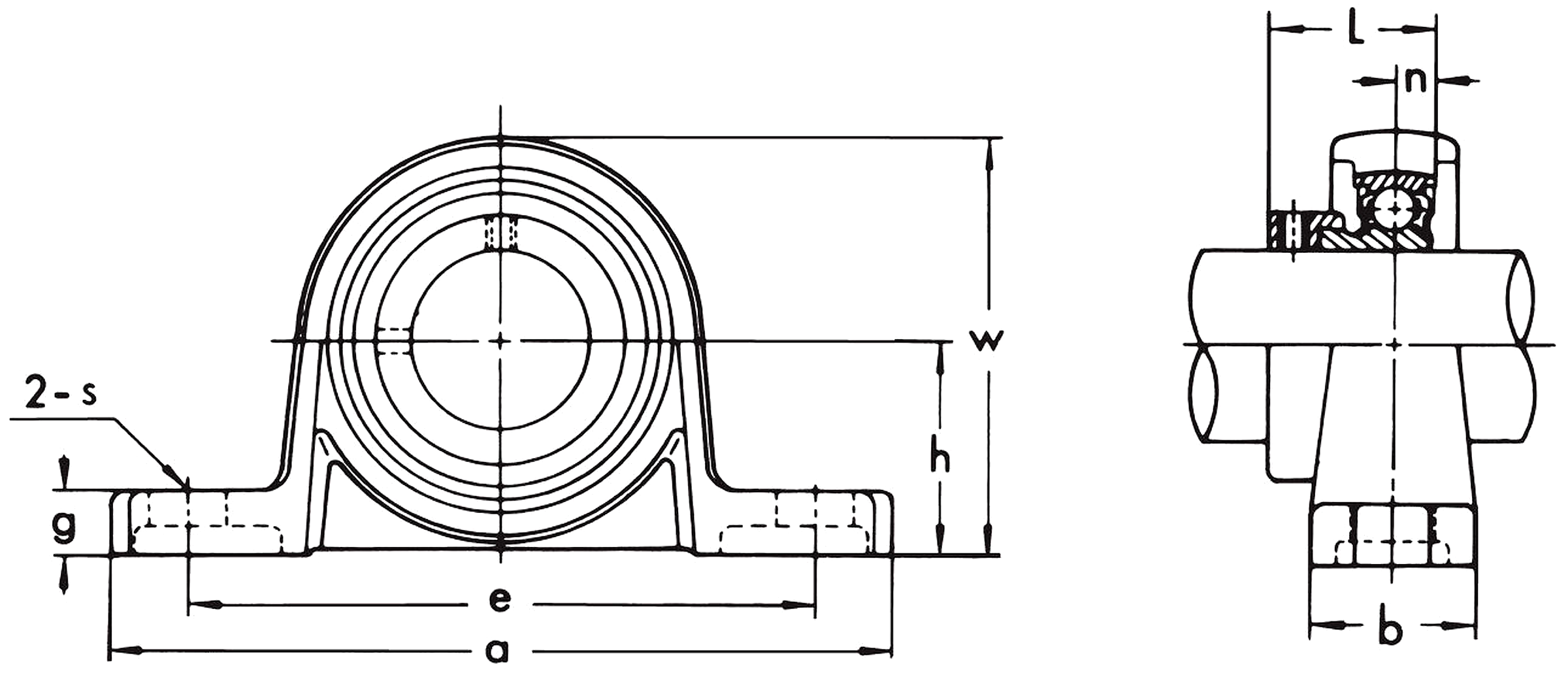

Measurement

Bore diameter:

20

h (mm):

28

a (mm):

100

e (mm):

80

b (mm):

20

s (mm):

10

g (mm):

9

w (mm):

55

Bi (mm):

24,5

n (mm):

6

Bolt size:

M8

Load ratings Insert dyn. C (kN):

7,9

Load ratings Insert stat. C0 (kN):

4

Weight (kg):

0,23

Product:

Pillow block

Product series:

MUP 000

Material:

Zincalloy die-casting with nickel chrome plating

Fixing:

Eccentric collar locking

Trademark:

ASAHI
