MUP 001

MUP 000

PDF datasheet

Specification

ARTNR 502019 MUP 001

Identification numbers

ARTNR

502019

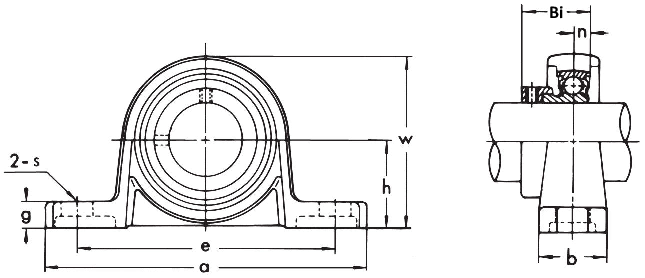

Measurement

Bore diameter:

12

h (mm):

19

a (mm):

71

e (mm):

56

b (mm):

16

s (mm):

7

g (mm):

6

w (mm):

38

Bi (mm):

17,5

n (mm):

4

Bolt size:

M6

Load ratings Insert dyn. C (kN):

4,3

Load ratings Insert stat. C0 (kN):

1,9

Weight (kg):

0,091

Product:

Pillow block

Product series:

MUP 000

Material:

Zincalloy die-casting with nickel chrome plating

Fixing:

Eccentric collar locking

Trademark:

ASAHI
