MUFL 005

MUFL 000

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

508570

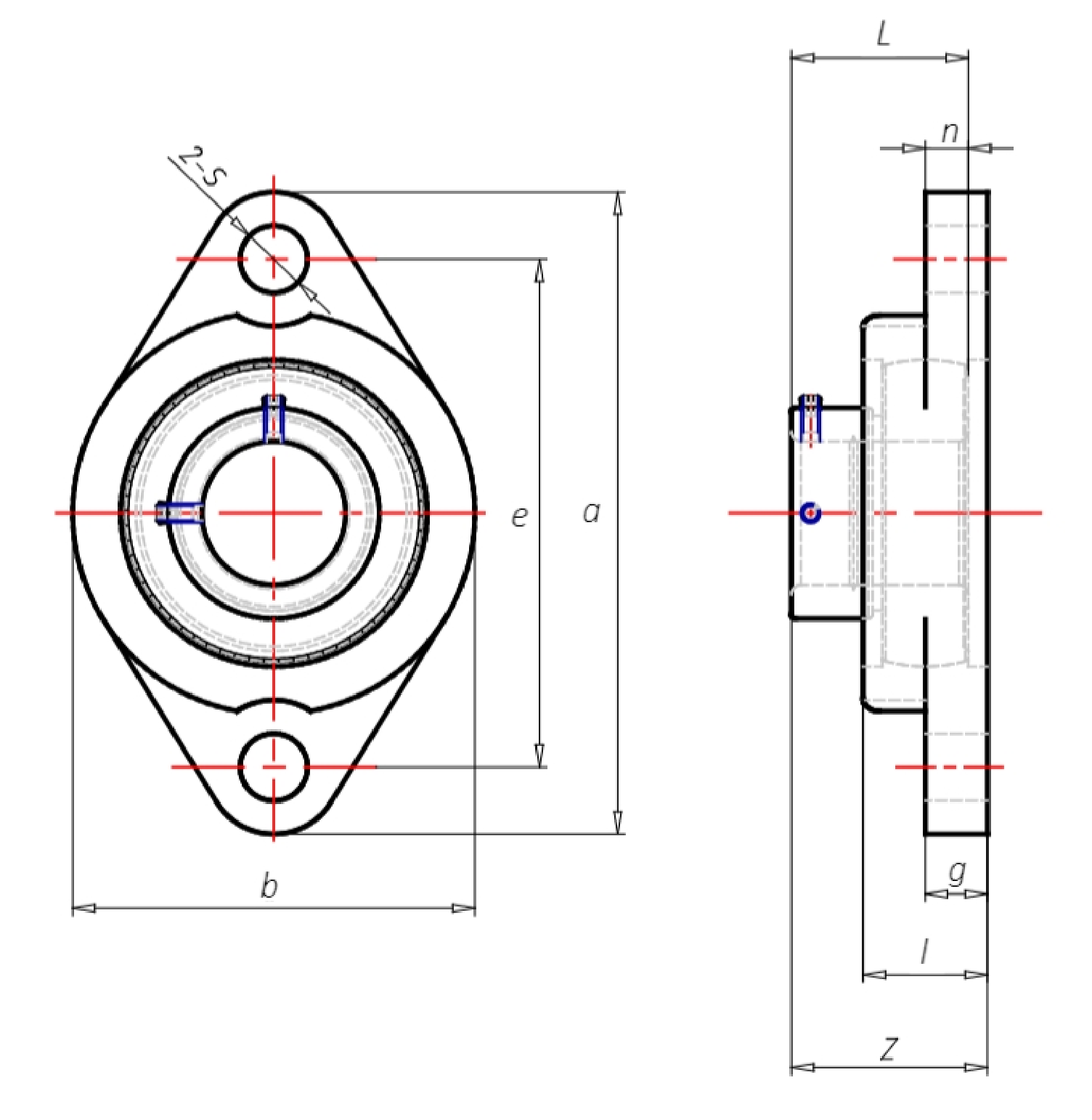

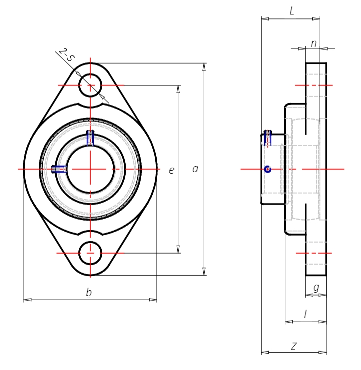

Measurement

Bore diameter:

a (mm):

e (mm):

i (mm):

g (mm):

l (mm):

s (mm):

b (mm):

Z (mm):

27,5

Bi (mm):

25,5

n (mm):

Bolt size:

Load ratings Insert dyn. C (kN):

8,7

Load ratings Insert stat. C0 (kN):

4,7

Weight (kg):

0,35

Product:

Flanged bearing unit

Product series:

MUFL 000

Material:

Stainless steel (Stainless Silver Version)

Fixing:

Eccentric collar locking

Trademark:

ASK
