MUCT 208

Bore diameter

reset

back to list

MUCT 208

MUCT 200

CAD-Model

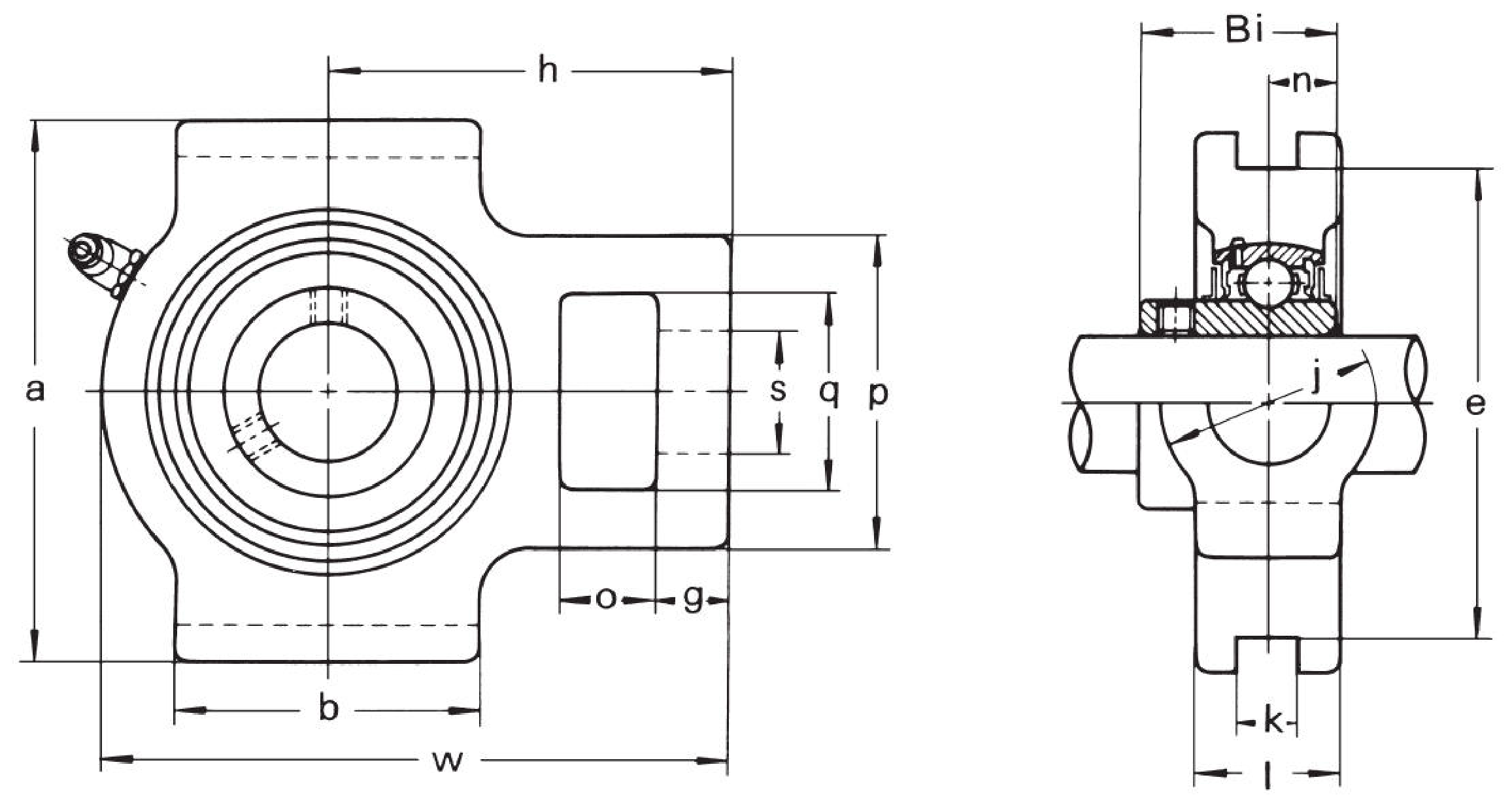

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 508489 MUCT 208

Identification numbers

ARTNR

508489

Measurement

Bore diameter:

40

o (mm):

20

g (mm):

15

p (mm):

80

q (mm):

49

s (mm):

29

b(mm):

80

k (mm):

16

e (mm):

102

a (mm):

114

w (mm):

142

j (mm):

31

l (mm):

49

h (h):

88

Bi (mm):

49,2

n (mm):

19

Load ratings Insert dyn. C (kN):

21,3

Load ratings Insert stat. C0 (kN):

14

Weight (kg):

2,31

Product:

Take-up unit

Product series:

MUCT 200

Material:

Stainless steel

Fixing:

Set-screw locking

Trademark:

ASK
