MUCPPL 205

MUCPPL 200

PDF datasheet

Specification

ARTNR 502246 MUCPPL 205

Find the right solution for your application

Find your contact person

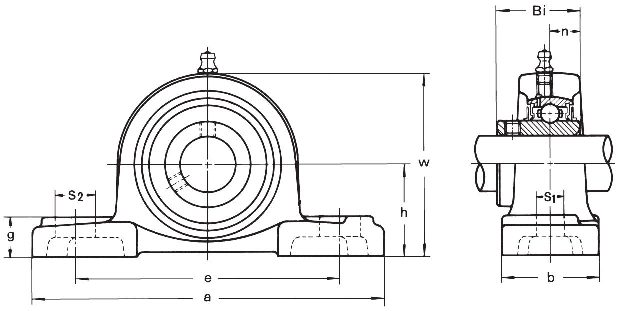

Measurement

Bore diameter:

25

h (mm):

36,5

a (mm):

140

e (mm):

105

b (mm):

38

s1 (mm):

11

s2 (mm):

14

g (mm):

14,5

w (mm):

71

Bi (mm):

34,1

n (mm):

14,3

Bolt size:

M10

Load ratings Insert dyn. C (kN):

11,9

Load ratings Insert stat. C0 (kN):

6,3

Weight (kg):

0,3

Product:

Pillow block

Product series:

MUCPPL 200

Material:

Thermoplastic

Fixing:

Set-screw locking

Trademark:

ASAHI

ARTNR:

502246
