MUCP 208

MUCP 200

PDF datasheet

Specification

ARTNR 508483 MUCP 208

Identification numbers

ARTNR

508483

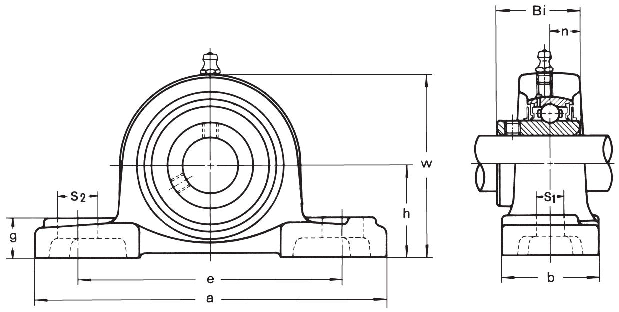

Measurement

Bore diameter:

40

h (mm):

49,2

a (mm):

184

e (mm):

137

b (mm):

54

s1 (mm):

17

s2 (mm):

20

g (mm):

15

w (mm):

98

Bi (mm):

49,2

n (mm):

19

Bolt size:

M14

Load ratings Insert dyn. C (kN):

21,3

Load ratings Insert stat. C0 (kN):

14

Weight (kg):

1,88

Product:

Pillow block

Product series:

MUCP 200

Material:

Stainless steel

Fixing:

Set-screw locking

Trademark:

ASK
