MUCFPL 204

MUCFPL 200

PDF datasheet

Specification

ARTNR 502179 MUCFPL 204

Identification numbers

ARTNR

502179

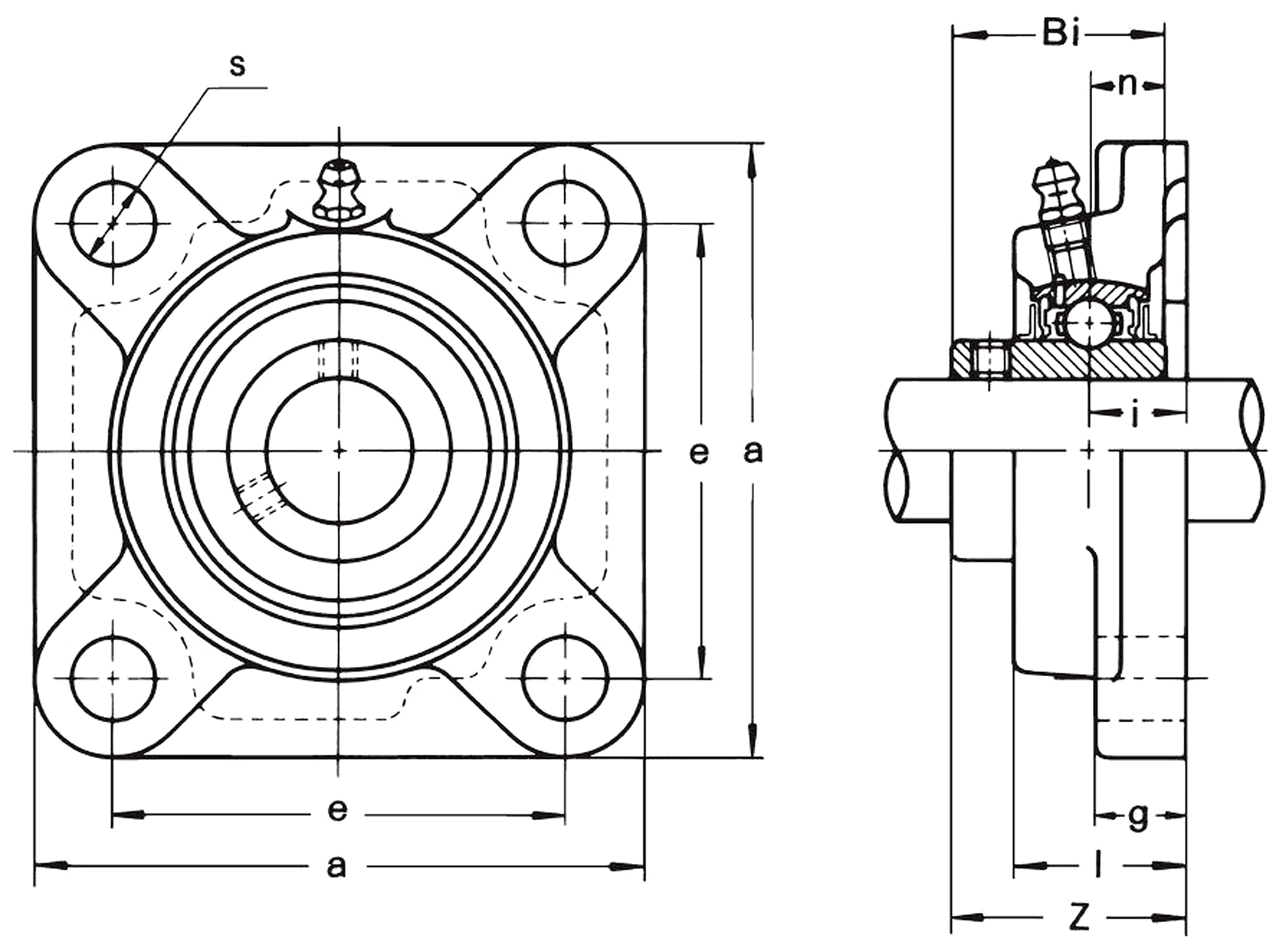

Measurement

Bore diameter:

20

a (mm):

86

e (mm):

63,5

i (mm):

18

g (mm):

13,4

l (mm):

27,8

s (mm):

11

Z (mm):

36,3

Bi (mm):

31

n (mm):

12,7

Bolt size:

M10

Load ratings Insert dyn. C (kN):

10,9

Load ratings Insert stat. C0 (kN):

5,3

Weight (kg):

0,19

Product:

Flanged bearing unit

Product series:

MUCFPL 200

Material:

Thermoplastic

Fixing:

Set-screw locking

Trademark:

ASAHI
