KP 003

KP 000

PDF datasheet

Specification

ARTNR 502040 KP 003

Identification numbers

ARTNR

502040

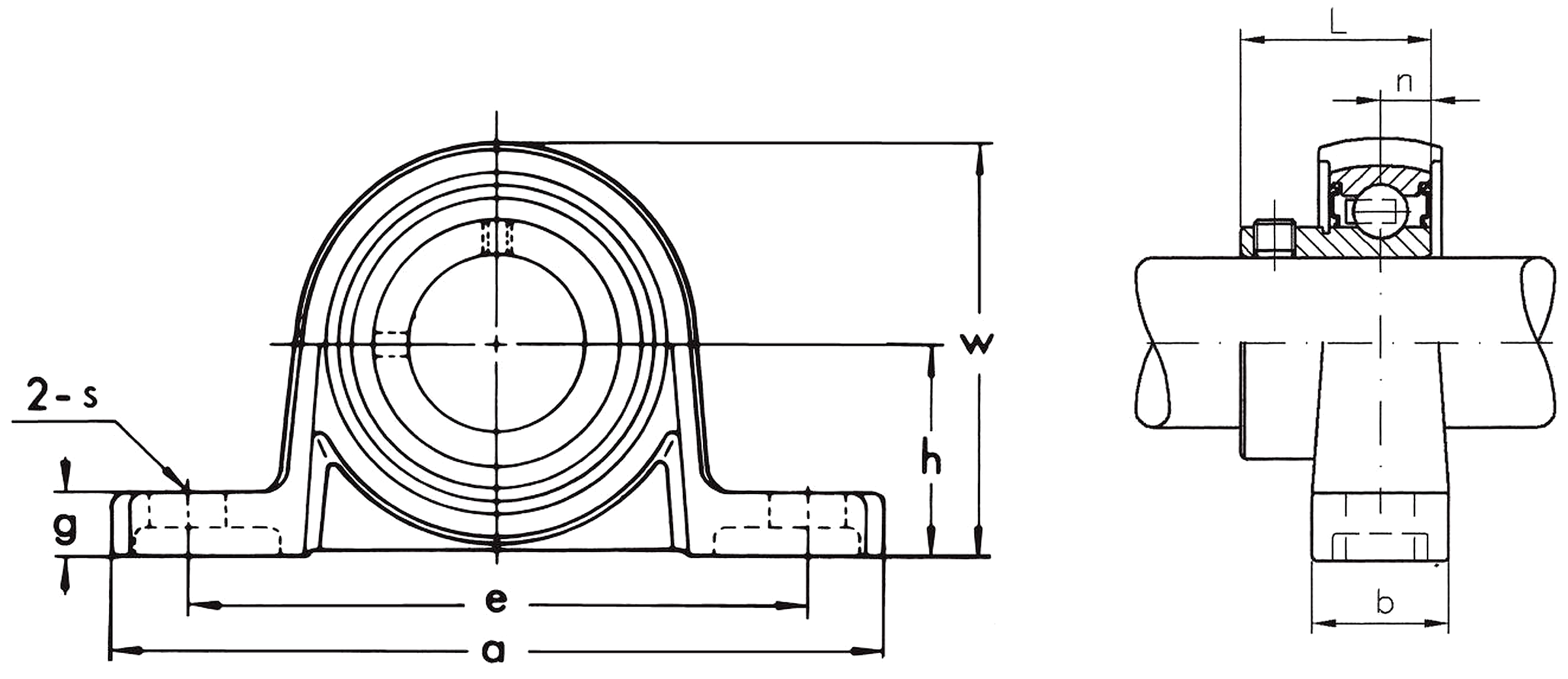

Measurement

Bore diameter:

17

h (mm):

24

a (mm):

85

e (mm):

67

b (mm):

18

s (mm):

7

g (mm):

7

w (mm):

47

Bi (mm):

17,5

n (mm):

5

Bolt size:

M6

Load ratings Insert dyn. C (kN):

6

Load ratings Insert stat. C0 (kN):

3,3

Weight (kg):

0,156

Product:

Pillow block

Product series:

KP 000

Material:

Zincalloy die-casting

Fixing:

Set-screw locking

Trademark:

ASAHI
