BPFL 204

BPFL 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

507092

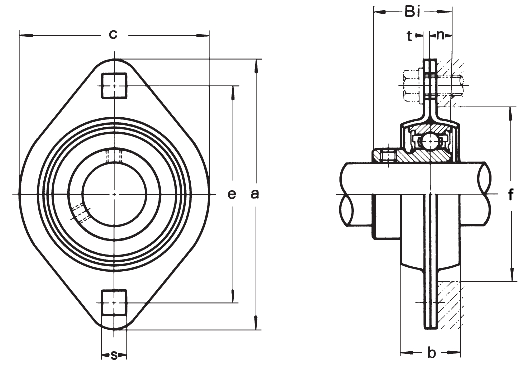

Measurement

Bore diameter:

a (mm):

t (mm):

s (mm):

b (mm):

c (mm):

f (mm):

Bi (mm):

n (mm):

Bolt size:

Load rating inserts dyn. C (kN):

12,8

Load rating inserts stat. C0 (kN):

6,6

Weight (kg):

0,24

Product:

Flanged bearing unit

Product series:

BPFL 200

Material:

Pressed steel

Fixing:

Set-screw locking

Trademark:

ASK

p (mm):

71,5

Two-bolt flange
Light duty
Set-screw locking
Insert B200
