BLCTE 202

BLCTE 200

CAD-Model

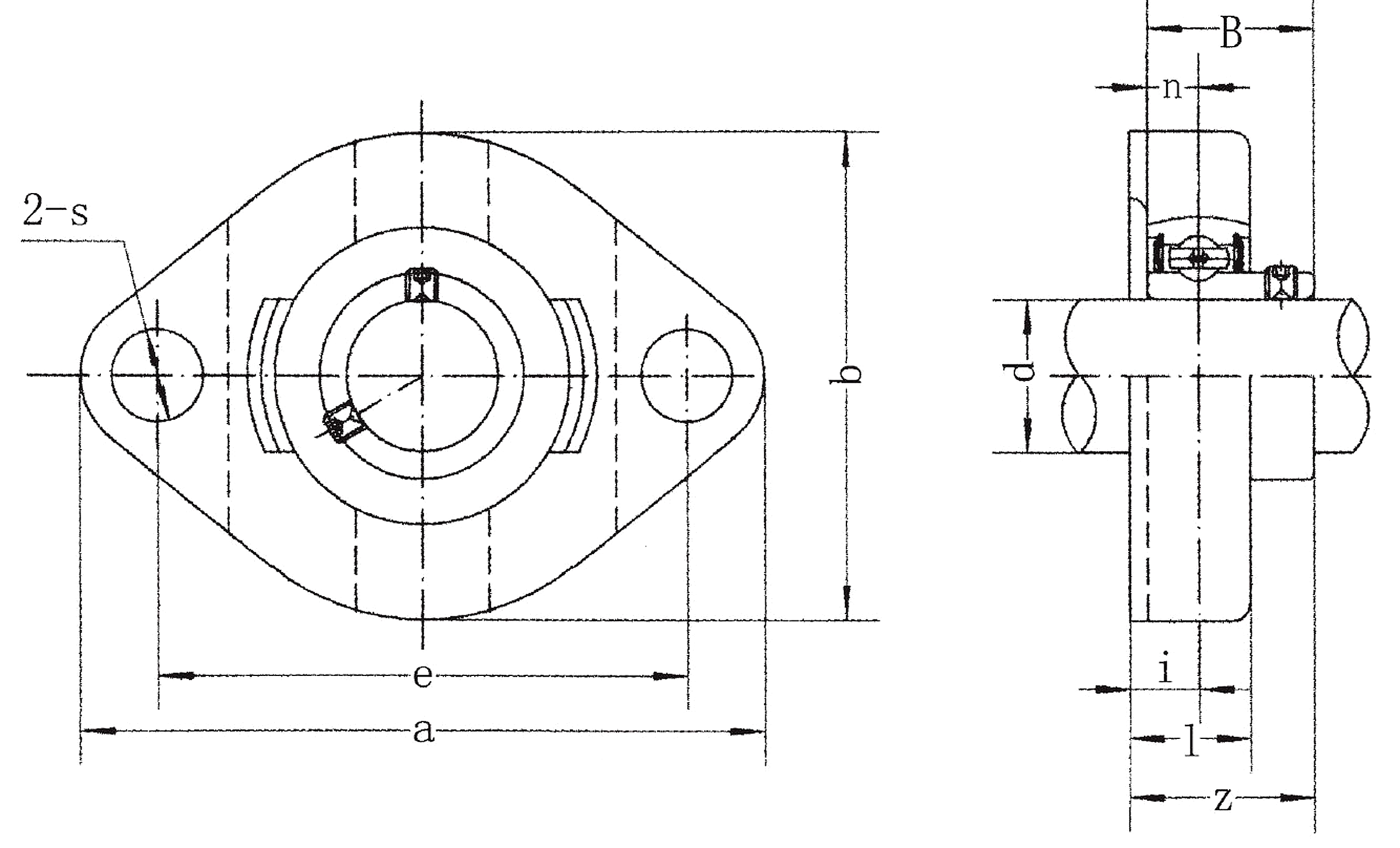

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

511969

Measurement

Bore diameter:

15

a (mm):

81

e (mm):

63,5

i (mm):

8,5

g (mm):

15

s (mm):

7

b (mm):

58,7

Z (mm):

24,5

Bi (mm):

22

n (mm):

6

Bolt size:

M6

Load ratings inserts dynamic . C (kN):

9,6

Load ratings inserts stat. C0 (kN):

4,6

Weight (kg):

0,3

Product:

Flanged bearing unit

Product series:

BLCTE 200

Material:

Cast iron

Fixing:

Set-screw locking

Trademark:

ASK

Two-bolt flange
Light duty
Set-screw locking
Insert B200

Available on request with inserts of serie KH. Covers are possible as special version.
The conventional housing tolerances are valid for all shown housing dimensions.
All cast housing tolerances are nominal sizes and the conventional cast tolerances must be added.
