MUCF 204

MUCF 200

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 508492 MUCF 204

Identification numbers

ARTNR

508492

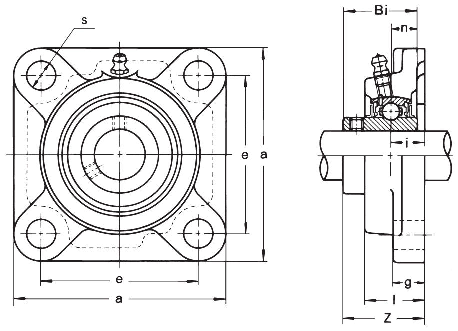

Measurement

Bore diameter:

20

a (mm):

86

e (mm):

64

i (mm):

15

g (mm):

9

l (mm):

25,5

s (mm):

12

Z (mm):

33,3

Bi (mm):

31

n (mm):

12,7

Bolt size:

M10

Load ratings Insert dyn. C (kN):

10,4

Load ratings Insert stat. C0 (kN):

5

Weight (kg):

0,55

Product:

Flanged bearing unit

Product series:

MUCF 200

Material:

Stainless steel

Fixing:

Set-screw locking

Trademark:

ASK
