KP 001

KP 000

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

Identification numbers

ARTNR

507909

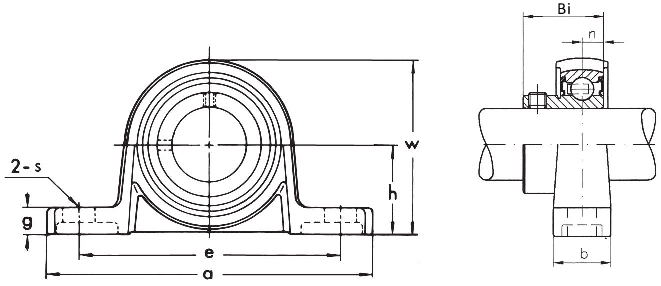

Measurement

Bore diameter:

h (mm):

a (mm):

e (mm):

b (mm):

s (mm):

g (mm):

w (mm):

Bi (mm):

14,5

n (mm):

Bolt size:

Load ratings Insert dyn. C (kN):

5,09

Load ratings Insert stat. C0 (kN):

2,4

Weight (kg):

0,09

Product:

Pillow block

Product series:

KP 000

Material:

Zincalloy die-casting

Fixing:

Set-screw locking

Trademark:

ASK
