KFL 001

KFL 000

CAD-Model

You are welcome to look at this series of measurements from all sides with our interactive CAD model.

CAD-Model

PDF datasheet

Specification

ARTNR 507097 KFL 001

Identification numbers

ARTNR

507097

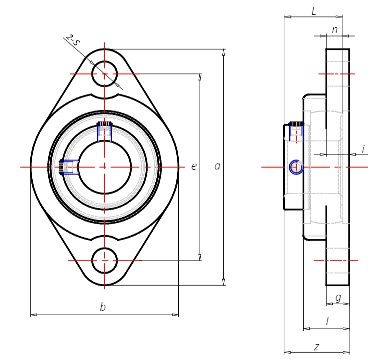

Measurement

Bore diameter:

12

a (mm):

63

e (mm):

48

i (mm):

5,5

g (mm):

5,5

l (mm):

11,5

s (mm):

7

b (mm):

38

Z (mm):

16

Bi (mm):

14,5

n (mm):

4

Bolt size:

M6

Weight (kg):

0,07

Product:

Flanged bearing unit

Product series:

KFL 000

Material:

Zincalloy die-casting

Fixing:

Set-screw locking

Trademark:

ASK

Load rating dyn. C (kN):

5,09

Load rating stat. C0 (kN):

2,4
